Product Images are shown for illustrative purposes only and may differ from actual product.

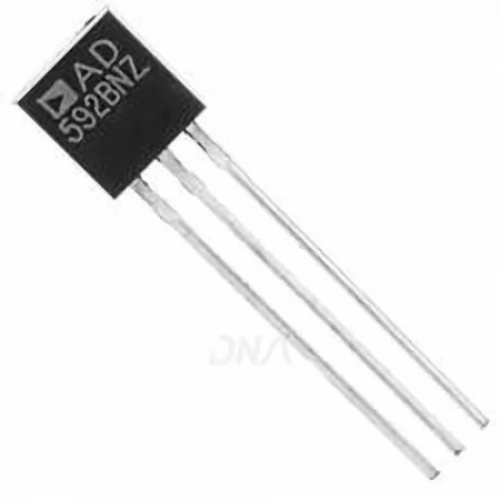

AD592 Precision IC Temperature Transducer


Write a review | 0 reviews

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-06-04

  • SKU: 457 | DAA619

Availability: InStock priceValidUntil: 2026-06-04

  • Rs. 602.98 (inc GST)
    Rs.511.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

AD592 Precision IC Temperature Transducer

The AD592 is a two terminal monolithic integrated circuit temperature transducer that provides an output current proportional to absolute temperature.

For a wide range of supply voltages the transducer acts as a high impedance temperature dependent current source of 1 µA/K. Improved design and laser wafer trimming of the IC's thin film resistors allows the AD592 to achieve absolute accuracy levels and nonlinearity errors previously unattainable at a comparable price.
The AD592 Temperature sensor can be employed in applications between −25°C and +105°C where conventional temperature sensors (i.e., thermistor, RTD, thermocouple, diode) are currently being used. The inherent low cost of a monolithic integrated circuit in a plastic package, combined with a low total parts count in any given application, make the AD592 the most cost effective temperature transducer currently available. Expensive linearization circuitry, precision voltage references, bridge components, resistance measuring circuitry and cold junction compensation are not required with the AD592.
Typical application areas include: appliance temperature sensing, automotive temperature measurement and control, HVAC (heating/ventilating/air conditioning) system monitoring, industrial temperature control, thermocouple cold junction compensation, board-level electronics temperature diagnostics, temperature readout options in instrumentation, and temperature correction circuitry for precision electronics. Particularly useful in remote sensing applications, the AD592 is immune to voltage drops and voltage noise over long lines due to its high impedance current output. AD592s can easily be multiplexed; the signal current can be switched by a CMOS multiplexer or the supply voltage can be enabled with a tri-state logic gate.

Features and Benefits of AD592

  • High Precalibrated Accuracy : 0.5°C max @ +25°C
  • Excellent Linearity : 0.15°C max (0°C to +70°C)
  • Wide Operating Temperature Range : −25°C to +105°C
  • Single Supply Operation : +4 V to +30 V
  • Excellent Repeatability and Stability
  • High Level Output : 1 µA/K
  • Two Terminal Monolithic IC : Temperature In/Current Out
  • Minimal Self-Heating Errors

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
