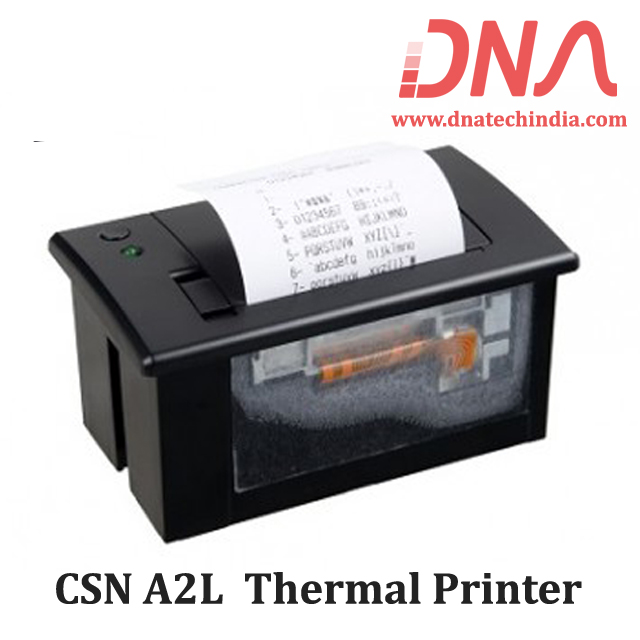

CSN A2L THERMAL PRINTER

  • Stock: Out Of Stock
  • SKU: 2423 | DAC254
  • Rs. 3,186.00 (inc GST)
    Rs.2,700.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

CSN A2L 2 inch Micro Panel Printer

CSN-A2 2-inch Micro Panel Printer with TTL Interface

CSN A2 is a small size compact Thermal Printer with TTL Interface. Using this thermal printer also known as receipt printer you can easily print receipts using your Microcontroller. This thermal printer can also be easily interfaced to Arduino, Raspberry pi or any other controller which has Serial Interface.

CSN A2 Thermal Printer uses a very common 2.25" thermal paper. CSN A2 thermal printer requires 5 Volt to 9 Volt DC regulated power supply which can provide more than 1.5 Ampere current. We suggest using 5 volt 2 Ampere power supply and if you are using a lower quality power supply module we would suggest using 5 volt 3 Ampere power supply.

Feature of CSN A2L Thermal Printer

  • Interface : TTL
  • Power supply : DC 5 to 9 Volts.
  • Color : Black/White
  • Smart Appearance.
  • Easy Paper Loading.
  • Low Noise Thermal Printing.
  • Different interfaces optional.
  • Front panel make paper replacement easily.
  • Easily embedded to any kinds of instrument and meters.

Specification  of CSN A2 Panel Thermal Printer

Model


CSN-A2

Print

Printing Method
Printing Speed
Resolution
Effective Printing Width

Thermal Line
90mm/s
203dpi(8 dots/mm)
48mm

Character

Character Set
Print Font

ASCII,GB2312-80(Chinese)
ANK:(9×1712×24), GBK: 24×2

Paper Spec.

Paper Type
Paper Width
Paper Roll Diameter
Paper Thickness

Thermal paper
57.5± 0.5mm
Max : 38mm
55-90µm

Reliability

TPH

50km(12.5% Print Ratio)

Interface


RS-232/TTL/Parallel/USB

Insert Depth


50mm

Power Supply (Adapter)


DC5V-9V/12V

Physical

Outline Dimension (WxDxH)
Installation Port Size
Color

111x65x56.5mm
103.3 x 57.3mm
Beige/Black

Environment

Operating Temp
Operating Humidity
Storage Temp
Storage Humidity

0°C ~ 50°C
10% ~ 80%
-20°C ~ 60°C
10% ~ 90%
