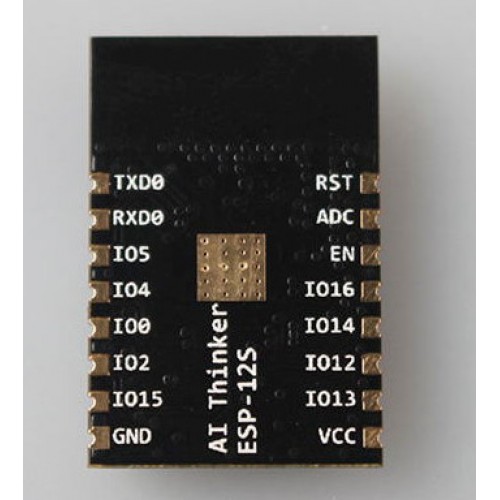

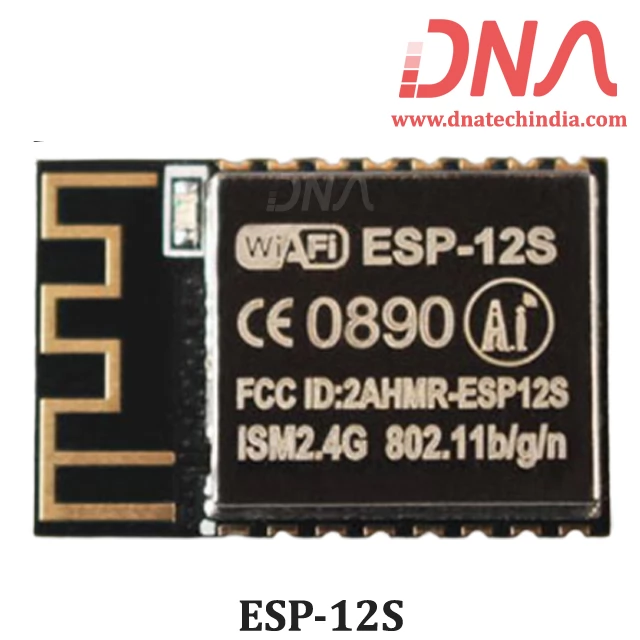

ESP-12S WiFi Module (ESP8266-12S)

ESP8266 is high integration wireless SOCs, designed for space and power constrained mobile platform designers.

This ESP-12S WiFi module has core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antennas. The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack. Users can use the add modules to an existing device networking, or building a separate network controller.

It provides unsurpassed ability to embed Wi-Fi capabilities within other systems, or to function as a standalone application, with the lowest cost, and minimal space requirement.

DNA Solutions has large collection of various types of ESP Wifi Module. Check our complete collection of ESP Wifi Module.

Features of ESP-12S

• 802.11 b/g/n

• Integrated low power 32-bit MCU

• Integrated 10-bit ADC

• Integrated TCP/IP protocol stack

• Integrated TR switch, balun, LNA, power amplifier and matching network

• Integrated PLL, regulators, and power management units

• Supports antenna diversity

• Wi-Fi 2.4 GHz, support WPA/WPA2

• Support STA/AP/STA+AP operation modes

• Support Smart Link Function for both Android and iOS devices

• SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO

• STBC, 1x1 MIMO, 2x1 MIMO

• A-MPDU & A-MSDU aggregation and 0.4s guard interval

• Deep sleep power <10uA, Power down leakage current < 5uA

• Wake up and transmit packets in < 2ms

• Standby power consumption of < 1.0mW (DTIM3)

• +20dBm output power in 802.11b mode

Specifications of ESP-12S

• WiFi Protocol : 802.11 b/g/n

• Frequency Range : 2.4GHz-2.5GHz (2400M-2483.5M)

• Peripheral Bus : UART/HSPI/I2C/I2S/Ir Remote Contorl；GPIO/PWM

• Operating Voltage : 3.3V

• Operating Current : Average value: 80mA

• Operating Temperature Range : -40°~125°

• Ambient Temperature Range : Normal temperature

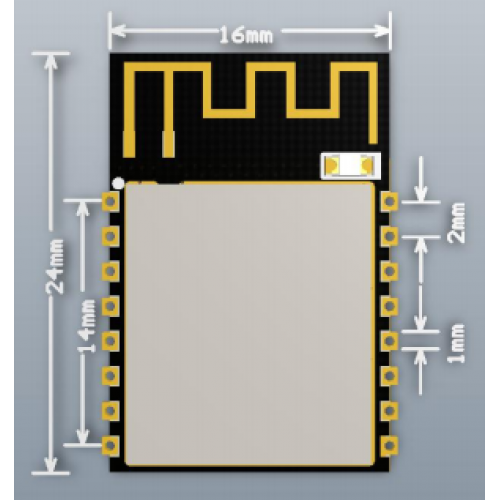

• Package Size : 18mm*20mm*3mm

• External Interface : N/A`

• Wi-Fi mode : station/softAP/SoftAP+station

• Security : WPA/WPA2

• Encryption : WEP/TKIP/AES

• Firmware Upgrade : UART Download / OTA (via network) / download and write firmware via host

• Support software Development : Supports Cloud Server Development / SDK for custom firmware development

• Network Protocols : IPv4, TCP/UDP/HTTP/FTP

• User Configuration : AT Instruction Set, Cloud Server, Android/iOS APP
