L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board


Write a review | 3 reviews

  • Stock: 2

    Availability: InStock priceValidUntil: 2026-06-22

  • SKU: 598 | DAA768

Availability: InStock priceValidUntil: 2026-06-22

  • Rs. 223.02 (inc GST)
    Rs.189.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

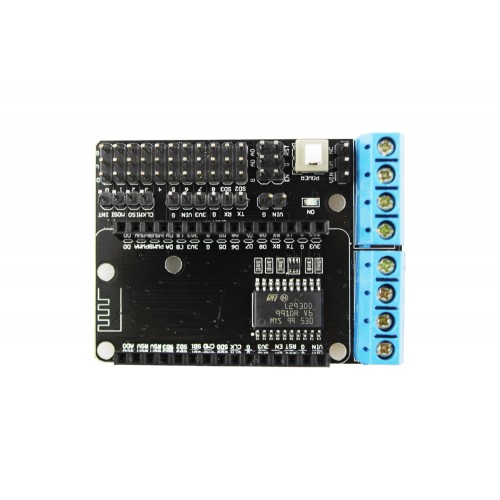

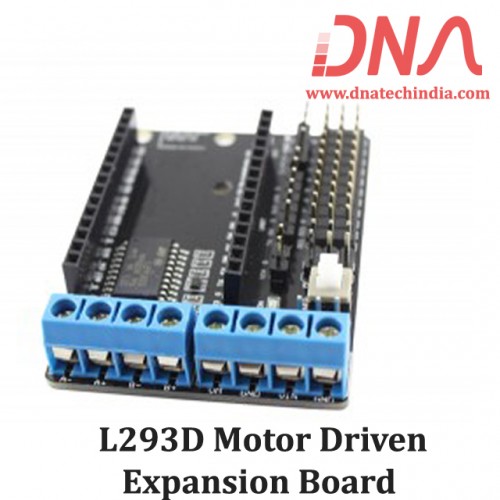

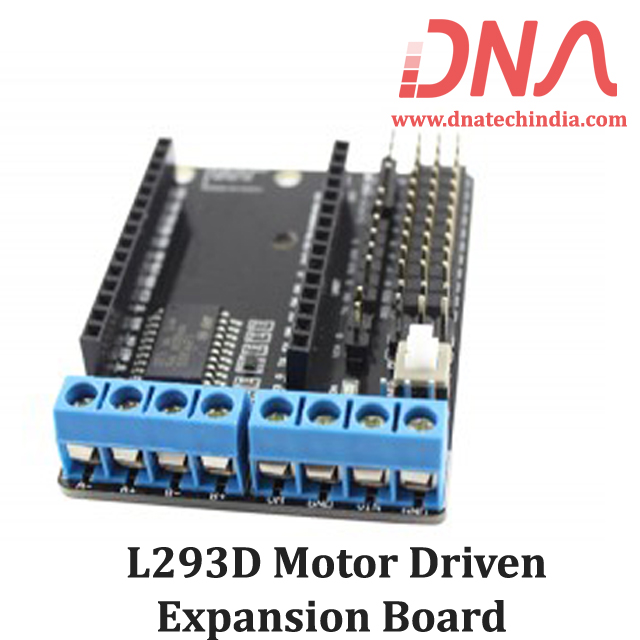

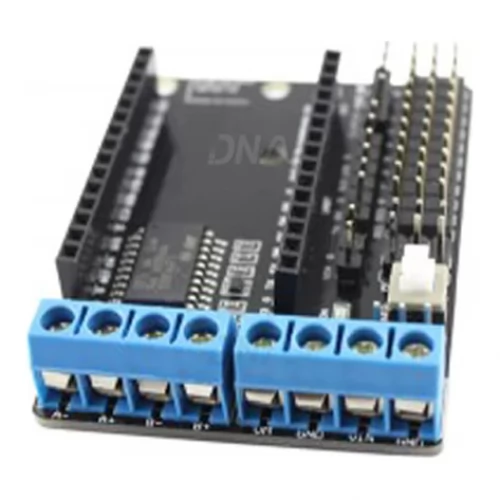

L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board

This is the first motor-driven expansion board that based on ESP- 12E development platform.

When inserting ESP-12E module, please note the direction consistent with an expansion board antenna; The use of short modules that can simultaneously control board and motor.

We have Various sizes of  Modules. Check out our complete collection of Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board

  • ESP12 DEV KIT development board expansion module;
  • lead ESP12 DEV KIT all the features of pins : SPI, UART, GPIO, AI and 3.3V power connector;
  • extend two-way motor-driven, two-way direct drive motor;
  • on board power switch;
  • L293D
  • Motor power, control power separation; In the experiment, a short circuit can block the merger, shorted to VIN and VM, while power supply to the motor and the control board.

Specification of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board

  • Motor Power Range : 4.5V ~ 36V
  • control supply range : 4.5V ~ 9V
  • Logical operating current Iss : ≤60mA (Vi = L), ≤22mA (Vi = H);
  • Driving part of the work current Io : ≤1.2A;
  • Maximum power dissipation : 4W (T = 90 ℃)
  • Control signal input level : High : 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
  • Operating temperature : -25 ℃ ~ + 125 ℃
  • Drive Type : Dual high-power H-bridge driver
  • ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
