WeMos D1 mini V3.0


Write a review | 0 reviews

  • Stock: 2

    Availability: InStock priceValidUntil: 2026-05-27

  • SKU: 1778 | DAA922

Availability: InStock priceValidUntil: 2026-05-27

  • Rs. 472.00 (inc GST)
    Rs.400.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

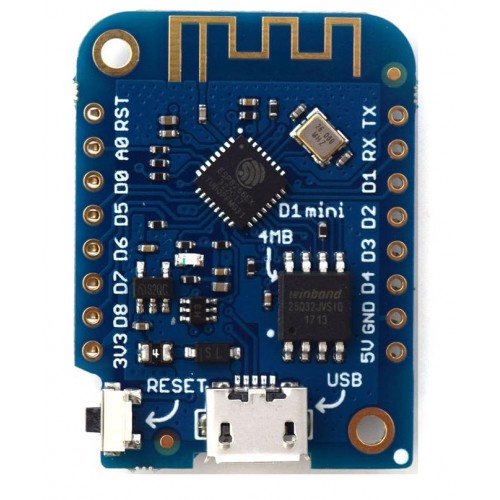

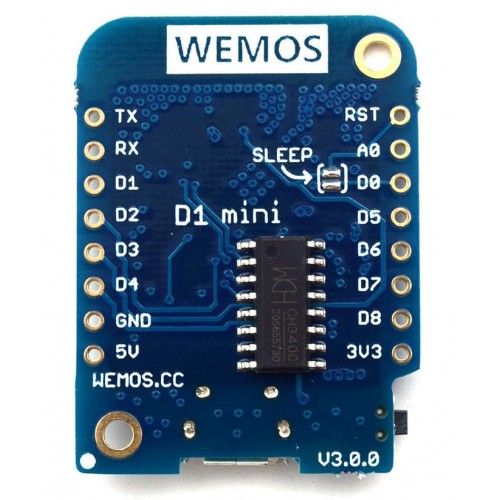

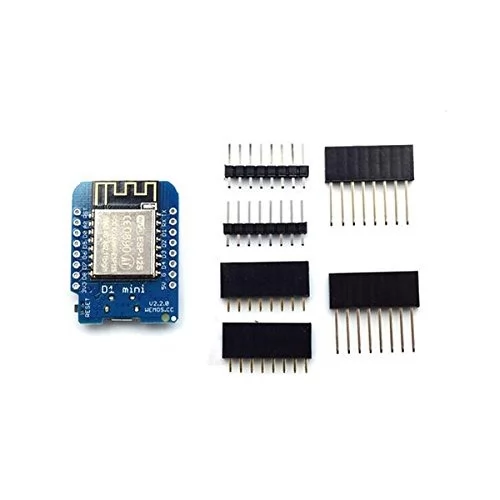

WeMos D1 mini V3.0

ESP8266 Wifi Mini Development Board

WeMos Mini D1 V3.0 WiFi ESP8266 Development board based around the ESP8266EX device this board offers excellent features for projects requiring a small footprint with which is compatible with MicroPython, Arduino, and NodeMcu. With plenty of shields available and a hugh amount of online support with articles, videos, software examples and library files.

Features Of WeMos D1 mini V3.0

  • 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
  • 1 analog input(3.2V max input)
  • a Micro USB connection
  • Compatible with Arduino
  • Compatible with nodemcu
  • Compatible with MicroPython

Technical specifications Of WeMos D1 mini V3.0

  • Microcontroller:      ESP-8266EX
  • Operating Voltage: 3.3V
  • Digital I/O Pins:     11
  • Analog Input Pins: 1(Max input: 3.2V)
  • Clock Speed :            80MHz/160MHz
  • Flash:                     4M bytes
  • Length:                     34.2mm
  • Width:                     25.6mm
  • Weight:                      30g
