MCP2551High Speed CAN Transceiver IC

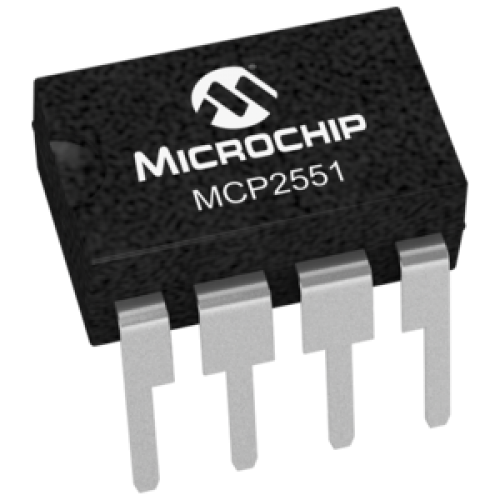

MCP2551 High Speed CAN Transceiver DIP IC

The MCP2551 is a high-speed Controller Area Network (CAN), fault-tolerant device that serves as the interface between a CAN protocol controller and the physical bus. MCP2551 CAN Transceiver IC provides differential transmit and receive capability for the CAN protocol controller, and is fully compatible with the ISO-11898 standard, including 24V requirements. It will operate at speeds of up to 1 Mb/s.

Typically, each node in a CAN system must have a device to convert the digital signals generated by a CAN controller to signals suitable for transmission over the bus cabling (differential output). It also provides a buffer between the CAN controller and the high-voltage spikes that can be generated on the CAN bus by outside sources (EMI, ESD, electrical transients, etc.).

Features of MCP2551 CAN Transceiver IC

• Slope control input

• Supports 1 Mb/s operation

• Implements ISO-11898 standard physical layer requirements

• Suitable for 12V and 24V systems

• Externally-controlled slope for reduced RF emissions

• Permanent dominant detect

• Low current standby operation

• High noise immunity due to differential bus implementation
