• WSH130 Hall Effect Switch

Product Images are shown for illustrative purposes only and may differ from actual product.

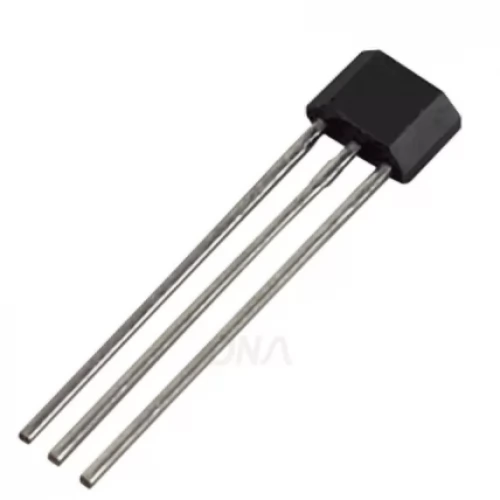

WSH130 Hall Effect Switch

  • Stock: Out Of Stock
  • SKU: 0297 | DAA577
  • Rs. 41.30 (inc GST)
    Rs.35.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

WSH130 Hall Effect Switch Sensor

WSH130 is designed to integrate Hall sensor with output driver together on the same chip, it is suitable for speed measurement, revolution counting, positioning, and DC brushless motors.

It includes a temperature compensated voltage regulator, a differential amplifier, a Hysteresis controller and a open-collector output driver capable of sinking up to 20mA current load. An on-chip protection resistor is implemented to prevent reverse power fault. The temperature-dependent bias increases the supply voltage of the hall plates and adjusts the switching points to the decreasing induction of magnets at higher temperatures. Subsequently, the output can keep switching on/off on more preciseswitch point regardless to the ambient temperature. WSH130 are rated for operation over temperature range from –40˚ C to 125 ˚C and voltage ranges from 2.4V to 26V.

Features of WSH130

  • Operates from 2.4V to 26V supply voltage with reverse voltage protection
  • Operates with magnetic fields from DC to 15kHz
  • On-chip Hall Sensor
  • On-chip temperature compensation circuitry minimizes shifts in on and off points and hysteresis over temperature and supply voltage
  • Ideal sensor for speed measurement, revolution counting, positioning, and DC brushless motors
  • On(L) with magnetic South pole and Off (H) with North pole

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited

Reviews (0)

Write a review

Note: HTML is not translated!
    Bad           Good
