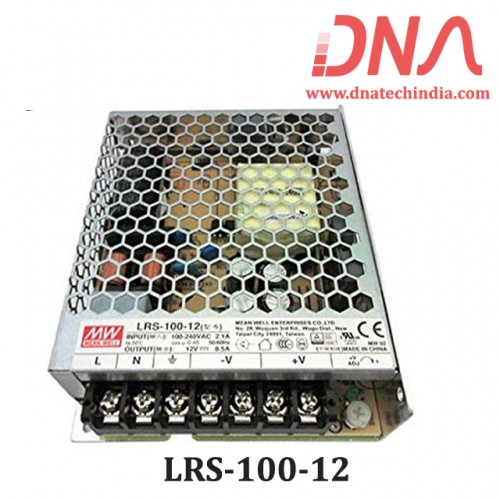

Meanwell LRS-100-12 Power Supply

12 Volts, 100 Watt Single Output Switching Power Supply from Meanwell

LRS-100 Series is a 100 Watt Single-Output Encolsed type power supply with 30mm of profile, Design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.

LRS-100-12 is a high quality Industrial Grade SMPS fom Meanwell. LRS100-12 SMPS is a 100 watt SMPS and gives 12 volts output. Meanwell LRS-100-12 switching power supply comes in mesh type casing and is very easy to mount.

Check out our Complete variety of Meanwell SMPS that we have.

Features of LRS100-12 Meanwell SMPS

Protections : Short circuit / Overload / Over voltage / Over temperature

Universal AC input / Full range

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

No load power consumption<0.5W

All using 105  long life electrolytic capacitors

Withstand 300 VAC surge input for 5 second

High operating temperature up to 70°C

Withstand 5G vibration test

High efficiency, long life and high reliability

Specification for LRS-100-12 Meanwell Power Supply

OUTPUT	Wattage  Voltage  Max Current	102  Watt 12 Volts 8.5 Ampere
INPUT	Efficiency Frequency Range:	88 % 47 ~ 63Hz
PROTECTION	Overloaded Over Volt	110 ~ 150% Rated Output Power. 28.8 ~ 33.6 Volts
ENVIRONMENT	Working Temp: Working Humidity: Storage Temp:  Vibration:	-30 ~ +70°C 20 ~ 90% RH non-condensing -40 ~ +85, 10 ~ 95% RH 10 ~ 500Hz, 5G 10min./1cycle, period for  60min. each along X, Y, Z axes
