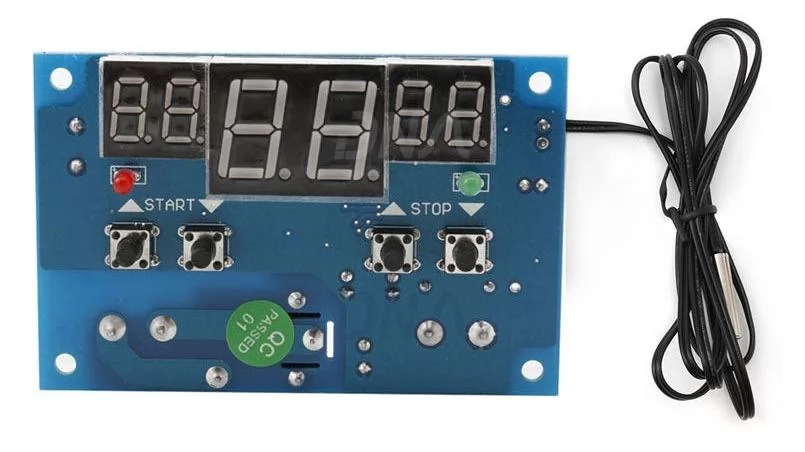

XH-W1401 Thermostat Module
- Stock: Out Of Stock
- Brand: Generic
- SKU: 2084 | DAB081
-
Rs. 454.30 (inc GST)
Rs.385.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

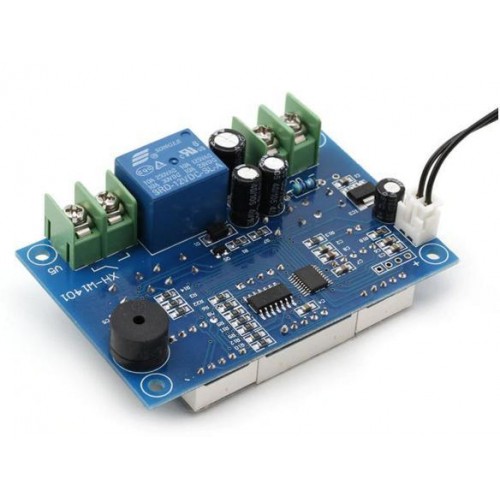

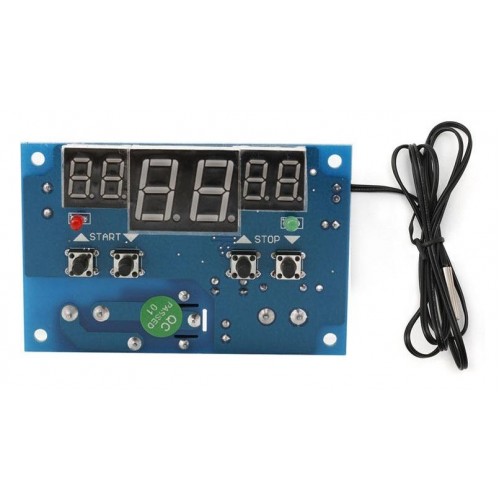

XH-W1401 Temperature Controller Module
XH-W1401 12 volt Digital Thermostat Module
XH-W1401 is a 12 volt Intelligent digital Thermostat module. XH-W1401 is a dual temperature controlled thermostat. This module can control both heater and cooler and you can set it according to your application.
A NTC temperature sensor is provided for monitoring temperature from a range of -9℃ to 99℃. A relay is providded for AC or DC load control the relay can control upto 10 ampere. The module input voltage (supply voltage) is 12 volts DC.
Features of XH-W1401 Temperature Sensor Module
- A simple Temperature Sensor Module with 30A Relay.
- Model : XH-W1401
- Thermostat Range : -9℃ to 99℃
- Thermostat Accuracy : 1℃
- Power Supply : DC9-12V
- Output : Electric relay output ,capacity 220V 10A/12V 10A
- For cooling or heating temperature control
1. High temperature start :
Cooling Mode : Set the starting temperature> stop temperature, when the detected temperature ≥ start temperature, the relay is closed, refrigeration equipment work; when the detected temperature ≤ stop temperature, the relay is off, refrigeration equipment stops working. For example: Set the start temperature is 30 ℃, stop temperature is 25 ℃, when the detected temperature ≥30 ℃, the relay is closed, start indicator (red) light; when the detected temperature ≤25 ℃, the relay off, stop instruction light (green) light.
2. Low temperature start :
Heating mode : Set the start temperature <stop temperature, when the detected temperature ≤ starting temperature, the relay is closed, heating equipment work; when the detected temperature ≥ stop temperature, the relay off, heating equipment stop working. For example: Set the start temperature is 25℃, stop temperature is 30 ℃, when the detected temperature ≤25 ℃, the relay is closed, start indicator (red) light; when the detected temperature ≥30 ℃, the relay off, stop instruction light (green) light.
