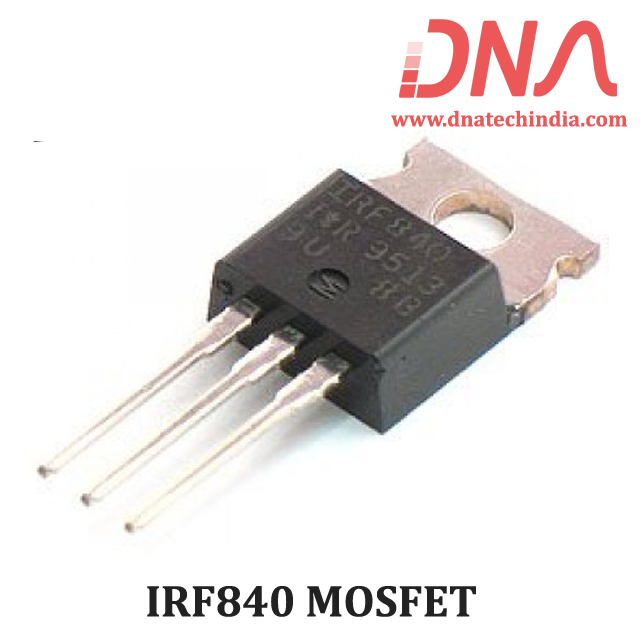

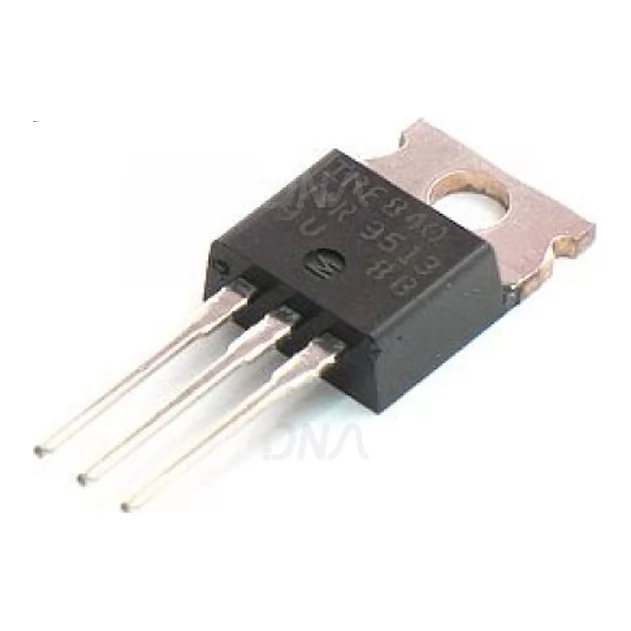

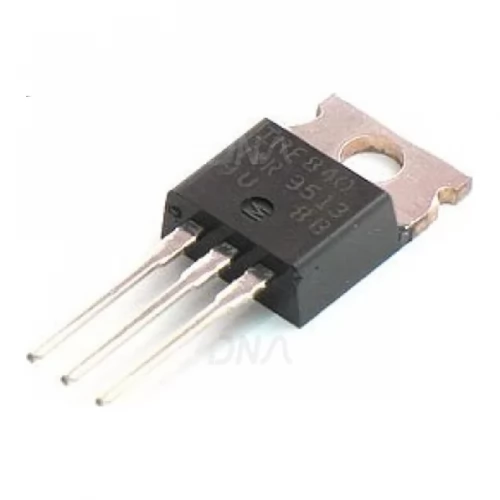

IRF840 N-Channel Power MOSFET TO-220 Package

IRF840: 500V N-Channel MOSFET for High Voltage Switching and Power Conversion

The IRF840 is a rugged N-Channel Power MOSFET designed for high-speed switching and efficient power conversion in high-voltage applications. With a drain-source voltage rating of 500 V and continuous drain current of 8 A, it is ideal for use in switch-mode power supplies, inverters, motor control circuits, and lighting ballasts. The IRF840 offers fast switching performance and low gate charge, and comes in a standard TO-220 package for effective thermal dissipation.

DNA is a trusted supplier of audio and power transistors in India, offering retail and bulk purchase options. We stock popular Electronic components like BJTs, MOSFETs, and rectifier diodes, available for fast dispatch across India.

Can’t find the exact transistor or Electronic Component? Our team can help you source it, click here to contact us.

Features of IRF840 MOSFET

• N-Channel enhancement mode power MOSFET
• Drain-Source Voltage rating of 500 V
• Continuous Drain Current of 8 A (at 25°C)
• Low gate charge and fast switching
• R_DS(on) as low as 0.85 Ω (max)
• High-speed switching and avalanche energy rated
• TO-220 package for efficient heat dissipation

Specifications of IRF840 MOSFET

• Transistor Type: N-Channel MOSFET
• Drain-Source Voltage (V_DSS): 500 V
• Gate Threshold Voltage (V_GS(th)): 2.0 to 4.0 V
• Continuous Drain Current (I_D): 8 A (at 25°C)
• Pulsed Drain Current (I_DM): 32 A
• R_DS(on): 0.85 Ω (max)
• Total Gate Charge (Q_g): 67 nC (typ)
• Power Dissipation (P_D): 125 W
• Package: TO-220

Applications of IRF840 MOSFET

• Switch-mode power supplies (SMPS)
• DC-DC converters and inverters
• Motor drivers and servo control circuits
• Lighting ballasts and energy-efficient systems
• High-frequency and high-voltage switching circuits

Related Links

• IRF840 Datasheet (PDF)
• Browse More Transistors & Diodes

Package Include

• 1 x IRF840 N-Channel Power MOSFET (TO-220)
