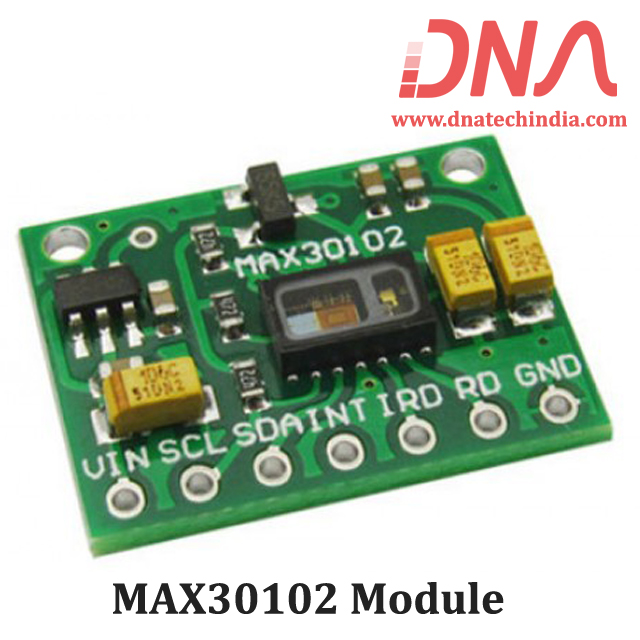

MAX30102 Module

MAX30102 Pulse Oximetry and Heart-rate Monitor Biosensor Module

The MAX30102 is an integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules

Features of MAX30102

• Heart-Rate Monitor and Pulse Oximeter Biosensor in LED Reflective Solution

• Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module

            Integrated Cover Glass for Optimal, Robust Performance

• Ultra-Low Power Operation for Mobile Devices

            Programmable Sample Rate and LED Current for Power Savings
            Low-Power Heart-Rate Monitor (< 1mW)
            Ultra-Low Shutdown Current (0.7µA, typ)

• Fast Data Output Capability

            High Sample Rates

• Robust Motion Artifact Resilience

            High SNR

• -40°C to +85°C Operating Temperature Range

Applications of MAX30102

• Fitness Assistant Devices

• Wearable Devices
