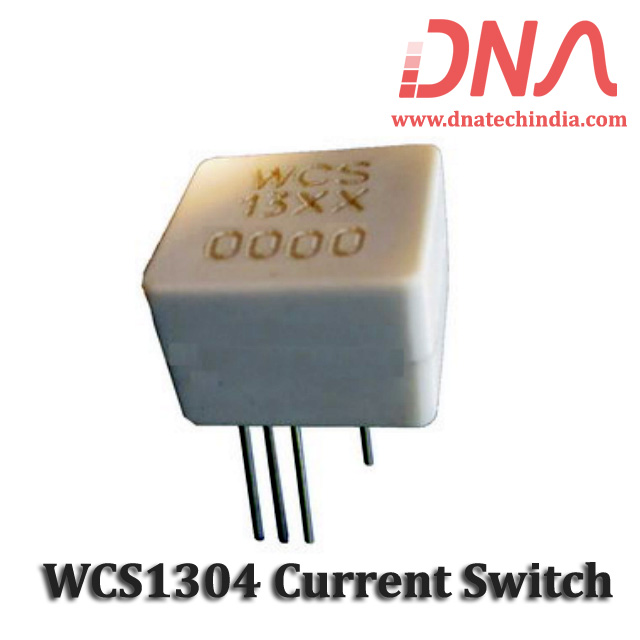

Winson WCS1304 Hall Effect Current Switch

WCS1304 Hall Effect Current Switch for current detection, features 8.3 mΩ resistance, and a wide voltage range of 2.6~18V.

The Winson WCS1304 Hall Effect Current Switch is designed for effective current detection in various industrial and commercial applications. With a low internal conductor resistance of 8.3 mΩ, this switch minimizes power loss and enhances reliability. The device operates within a voltage range of 2.6 to 18V, making it versatile for different systems.

The WCS1304 outputs a 'Low' signal when the input current meets or exceeds 3.0A and switches to 'High' below 2.2A, offering precise control. Its electrical isolation allows for safer integration in systems without costly isolation methods. This switch is ideal for short circuit detection, load detection, and over-current fault detection.

Explore the capabilities of the Winson WCS1304 Hall Effect Current Switch in your projects. Its temperature compensation circuit and low operating current of 2.0mA ensure efficiency in performance. Discover how this current sensor can streamline your electronic designs while keeping costs competitive.

Discover the reliability of the Current and Voltage Sensor category at DNA. The Winson brand offers quality solutions for current detection. Explore our range to find the perfect fit for your needs. Check other Current and Voltage Sensor that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find a specific part, let us know. We can import items not in stock and support you with retail or bulk orders. Check out our range of Development boards, Power Supply, Development Module, Humidity & Temperature Sensor, MOSFET, and Hongfa Relay. Contact Us.

Features of Winson WCS1304 Hall Effect Current Switch

• 8.3 mΩ internal conductor resistance
• Output 'Low' when IP>= Iop
• Output 'High' when IP < Irp
• Wide operating voltage range 2.6~18V
• Low operating current 2.0mA
• 10K Hz bandwidth
• Operating Point Iop: Min 3.0Amp
• Max 4.0Amp
• Release Point Irp: Min 2.2Amp

Specification of Winson WCS1304 Hall Effect Current Switch

• Internal resistance: 8.3 mΩ
• Operating voltage range: 2.6~18V
• Operating current: 2.0mA
• Bandwidth: 10K Hz
• Operating Point Iop: 3.0-4.0Amp
• Release Point Irp: 2.2Amp

Applications of Winson WCS1304 Hall Effect Current Switch

• Short circuit detection
• Load detection
• Over-current fault detection
• Industrial electronic systems
• Commercial electronic systems

Related Links for Winson WCS1304 Hall Effect Current Switch

Winson WCS1304 Current Switch Datasheet:

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X Winson WCS1304 Hall Effect Current Switch
