GY-906 MLX90614ESF MODULE


Write a review | 0 reviews

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-02-18

  • Brand: Generic
  • SKU: 2391 | DAC227

Availability: InStock priceValidUntil: 2026-02-18

  • Rs. 913.56 (inc GST)
    Rs.774.20 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

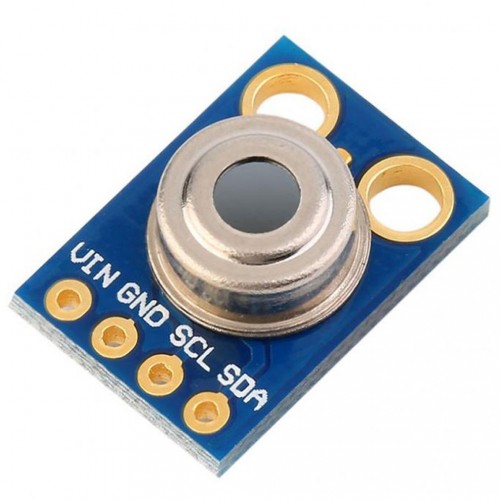

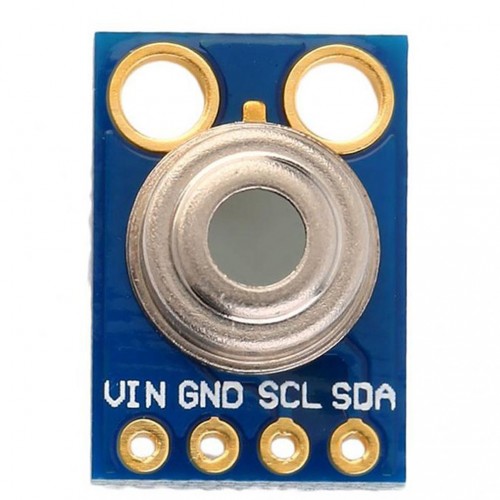

GY-906 MLX90614ESF MODULE

GY-906-MLX90614ESF-New-MLX90614-Contactless-Temperature-Sensor-Module-Compatible

Up for sale is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it’s I2C interface.

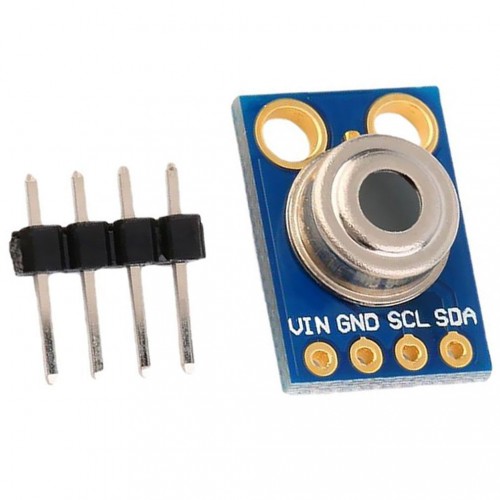

This sensor comes with a breakout board with all of the components needed for operation and two types of pins.

Specification :

  • Small size, low cost
  • Mounted on a breakout board with two types of pins
  • 10k Pull up resistors for the I2C interface with optional solder jumpers
  • Easy to integrate
  • Factory calibrated in wide temperature range
  • -40… 125C for sensor temperature and
  • -70… 380C for object temperature.
  • High accuracy of 0.5C over wide temperature range
  • (0… 50?C for both Ta and To) High (medical) accuracy calibration
  • Measurement resolution of 0.02C
  • Single and dual zone versions
  • SMBus compatible digital interface
  • Customizable PWM output for continuous reading
  • Simple adaptation for 8…16V applications
  • Sleep mode for reduced power consumption
  • Different package options for applications and measurements versatility
  • Automotive grade

Application :

  • High precision non-contact temperature measurements
  • Thermal Comfort sensor for Mobile Air Conditioning control system
  • Temperature sensing element for residential,
  • commercial and industrial building air conditioning Windshield defogging
  • Automotive blind angle detection
  • Industrial temperature control of moving parts
  • Temperature control in printers and copiers
  • Home appliances with temperature control
  • Healthcare
  • Livestock monitoring
  • Movement detection
  • Multiple zone temperature control – up to 127 sensors can be read via common 2 wires
  • Thermal relay / alert
  • Body temperature measurement
  • Data check

Packaging Included:

  • 1 x MLX90614ESF-BAA-000-TU-ND Infrared Thermometer Module IR Sensor for Arduino

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
