Melexis MLX90615 Non-Contact Infrared Temperature Sensor

Write a review | 1 reviews

Stock: 12

SKU: 1001 | DAA699

Rs. 1,888.00 (inc GST)
Rs.1,600.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Melexis MLX90615 Non-Contact Infrared Thermometer

Melexis MLX90615 is Non Contact Digital Plug & Play Infrared Thermometer in an Ultra Small TO-can is an Infra Red thermometer for non contact temperature measurements.

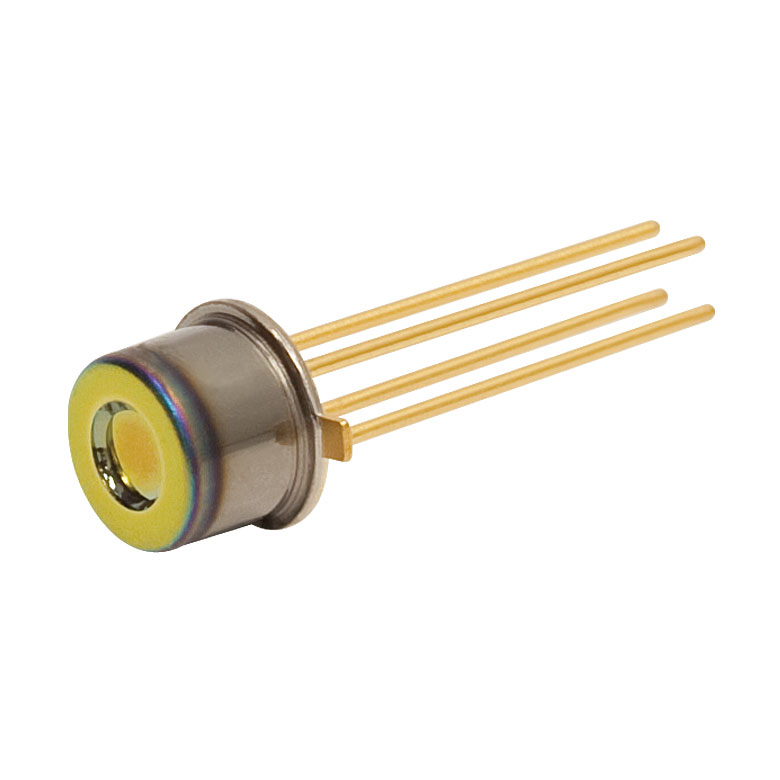

The MLX90615 integrates both the IR sensitive thermopile detector chip and the signal conditioning ASIC in the same miniature TO-46 can. Its ultra small size makes it extremely well suited for medical applications like ear thermometers or other applications where "small things make a big difference". The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C. The user can configure the digital output to be PWM.

You can easily find Arduino libraries for MLX90615 Non contact temperature Sensor. It is very easy to use.

Features of MLX90615 Infrared Thermometer

Easy to use
Factory calibrated IR thermometer with linear digital output
Small size TO-46 can, easy to integrate
Streamlined production
2.4-3.3V supply voltage with power saving mode for battery operation
SMBus interface or PWM temperature output
Performance
Standard calibration in wide temperature range: ambient temperature from -20 to 85°C object temperature from -20 to 115°C
Better than ±0.1°C accuracy in the range 30-40°C
0.02°C readout resolution
Quality
High reliability and long-term stability
Trace-ability through unique ID number in memory
RoHS compliant

Applications of MLX90615

Ear thermometer : fast and easy fever measurement
Body temperature monitoring : monitoring the temperature of patients during operation or people in intense physical effort (athletes, firefighters, soldiers).
Home healthcare : measuring temperature in home use health equipment, 24/7 body temperature tracking
Mobile telephones : The MLX90615 is so small and easy to integrate, it can easily fit into handheld devices
