MLX 90614 Non Contact Infrared Temperature Sensor

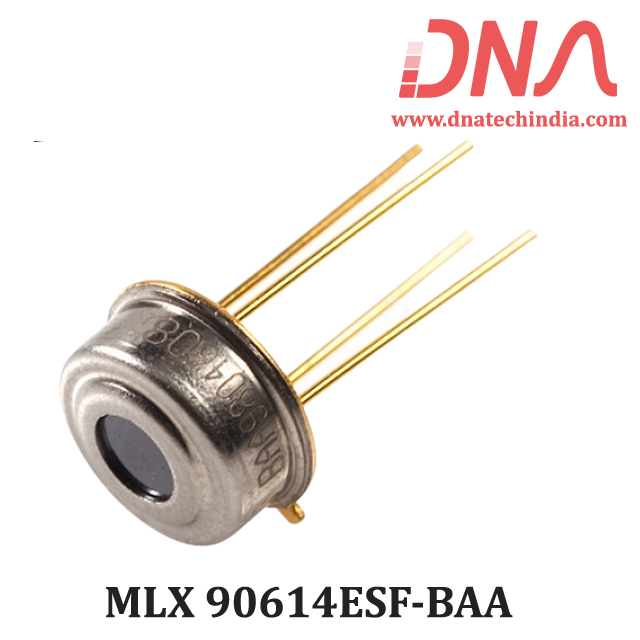

Melexis MLX90614ESF-BAA is Non Contact Digital Plug & Play Infrared Thermometer

The MLX90614 is an infrared thermometer for non-contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can. Integrated into the MLX90614 sensor has a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.

The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C.

The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120°C, with an output resolution of 0.14°C.

Details of MLX90614 Sensor

• Part Number:  MLX90614ESF-BAA
• Temperature Range: -40C to 85C
• Supply Voltage: 3.3 Volts
• Supply Current: 1.5-2.5 ma

Features and Benefits of MLX90614 Sensor

• Small size, low cost
• Easy to integrate
• Factory calibrated in wide temperature range:
•  -40°C…+125˚C for sensor temperature and
•  -70°C…+380˚C for object temperature.
• High accuracy of 0.5°C in a wide temperature range (0°C…+50°C for both Ta and To)
• High (medical) accuracy calibration
• Measurement resolution of 0.02°C
• Single and dual zone versions
• SMBus compatible digital interface
• Customizable PWM output for continuous reading
• Available in 3V and 5V versions
• Simple adaptation for 8V…16V applications
• Sleep mode for reduced power consumption
• Different package options for applications and measurements versatility
• Automotive grade

Application of MLX90614 Temperature Sensor

• High precision non-contact temperature measurements
• Thermal Comfort sensor for Mobile Air Conditioning control system
• Temperature sensing element for residential, commercial and industrial building air conditioning
• Windshield defogging
• Automotive blind angle detection
• Industrial temperature control of moving parts
• Temperature control in printers and copiers
• Home appliances with temperature control
• Healthcare
• Livestock monitoring
• Movement detection
• Multiple zone temperature control – up to 127 sensors can be read via common 2 wires
• Thermal relay / alert
• Body temperature measurement
