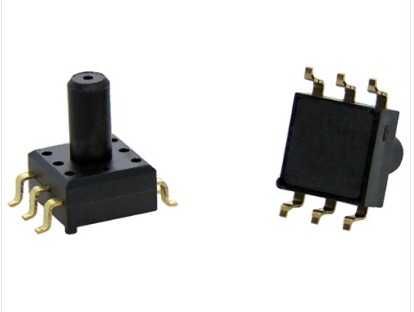

MPS-3117-006GC-A2 PRESSURE SENSOR

MPS-3117-006GC-A2 PRESSURE SENSOR

The MPS-3117-006GC-A2 is part of the MPS-3110 series, featuring a surface-mount device (SMD) package that facilitates easy integration into various electronic systems. Its compact design and solid-state reliability make it suitable for embedding in OEM equipment. This sensor is designed for applications requiring precise pressure measurements and offers the flexibility for manufacturers to implement their own external temperature compensation and signal conditioning.

DNA solutions, Nashik has various types of Sensor's. Check out our complete collection of Sensor's.

• Cost-Effective SMD Package: Facilitates easy integration and reduces manufacturing costs

• Wide Operating Temperature Range: Ensures reliable performance in diverse environmental conditions

• Solid-State Reliability: Offers long-term stability and durability

• Ease of Use: Simplifies the design process for various applications

• Easily Embedded in OEM Equipment: Compact size allows for seamless incorporation into existing systems

Specifications of MPS-3117-006GC-A2 PRESSURE SENSOR

• Pressure Range: 0 to 5.8 PSI (gauge pressure)

• Operating Temperature Range: -40°C to +85°C

• Drive Voltage: 2 to 15 VDC (5 VDC typical)

• Drive Current: 0.4 to 3 mA (1 mA typical)

• Linearity: ±0.3% of span

• Temperature Coefficient of Zero Offset: ±0.08% of span/°C

• Temperature Coefficient of Span: -0.16% to -0.26% of span/°C

• Resistance: 4 to 6 kΩ

Applications of MPS-3117-006GC-A2 PRESSURE SENSOR

• Digital Blood Pressure Monitors

• Digital Pressure Gauges

• Environmental Monitoring

• Consumer Electronics and Sports Equipment

• Medical Instrumentation and Monitoring

Package Includes

      1 x MPS-3117-006GC-A2 PRESSURE SENSOR
