Product Images are shown for illustrative purposes only and may differ from actual product.

YF-DN50 WATER FLOW SENSOR

  • Stock: 1
  • SKU: 1948 | DAB260
  • Rs. 2,486.26 (inc GST)
    Rs.2,107.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

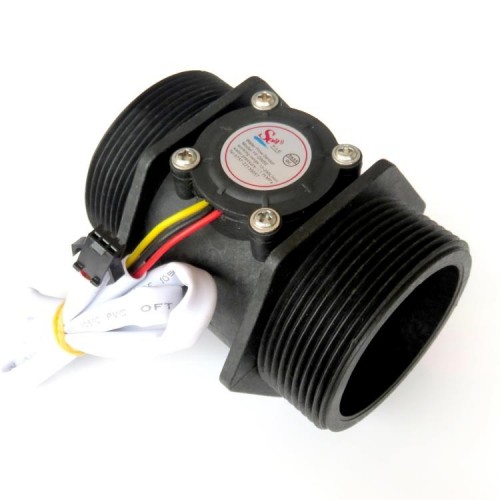

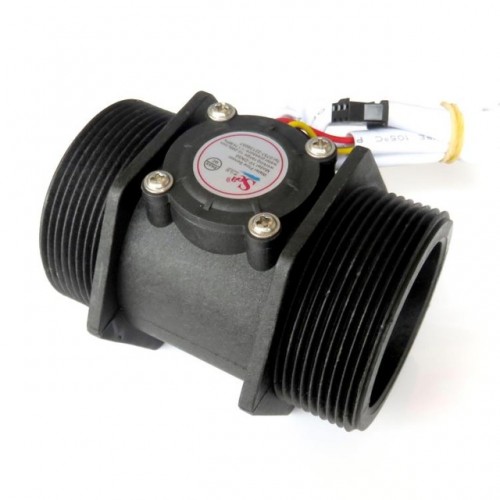

WATER FLOW SENSOR YF-DN50

YF-DN50 2" Water flow sensor for 10-200 Liter/Min

YF-DN50 is a large 2 inch diameter Water Flow meter Sensor that can be used to measure flow rate from 10 - 200 Liter/min

Features Of WATER FLOW SENSOR YF-DN50

  • Working voltage range : DC 5-18 V

  • Waterproof, Heat resistance, pressure resistance, cold resistance, Easy to install.

  • Flow range : 10-200 Liter per min

  • Sensor : Hall effect

  • Maximum current : 15 mA (5 volt DC)

  • Operating Temp : up to 80C,Operating humidity:35%-90%RH

  • Allow compression : Water pressure 1.75 Mpa below

  • Insulation resistance : >100M OHM

  • Storage Temperature : -25-80C

  • Storage humidity : 25%-95%RH

  • Output Waveform : Square Wave,output pulse signal.
