Analog pH Sensor/Meter Kit
- Stock: Out Of Stock
- SKU: 1043 |
-
Rs. 3,538.82 (inc GST)
Rs.2,999.00 + GSTQty :
| Also Available: DV164122 Microchip PICkit Serial Analyzer in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

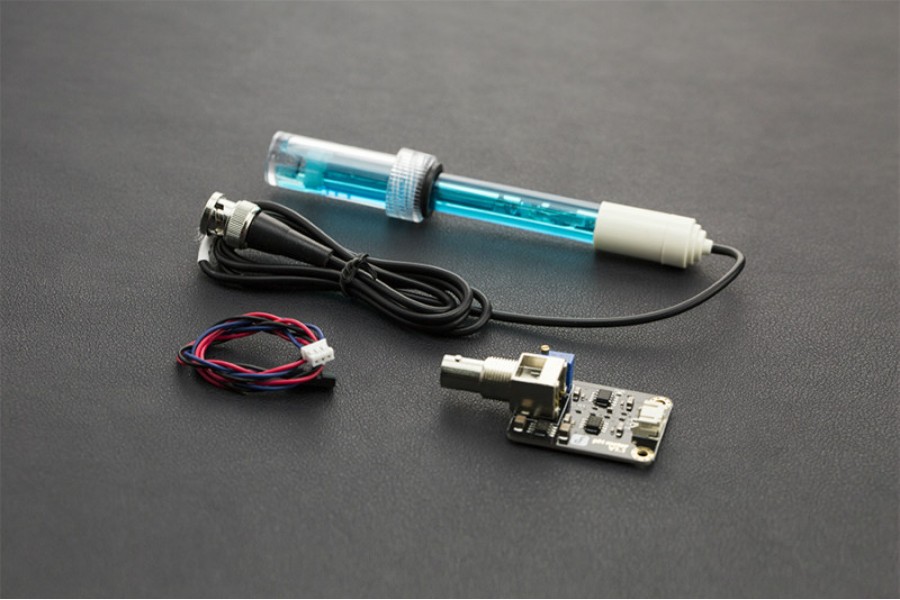

Analog pH Sensor/Meter Kit
pH stands for power of hydrogen
Need to measure water quality and other parameters but haven't got any low cost pH meter? Find it difficult to use with Arduino? Our analog pH meter, specially designed for Arduino controllers and has convenient and practical "Gravity" connector and a bunch of features. Instant connection to your probe an your Arduino to get pH measurements at ± 0.1pH (25 ℃). For most hobbyist this great accuracy range and it's low cost makes this a great tool for biorobotics and other projects! It has an LED which works as the Power Indicator, a BNC connector and PH2.0 sensor interface. To use it, just connect the pH sensor with BND connector, and plug the PH2.0 interface into the analog input port of any Arduino controller. If pre-programmed, you will get the pH value easily. Comes in compact plastic box with foams for better mobile storage.
Build your own PH meter gadjet, or a water monitoring station for your water tanks. This and our other water sensor devices could make for the ultimate water control device. Use it for your aquaponics or fish tanks or other materials that need measurements.
What is pH?
“pH stands for power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.”
Features of pH Sensor
Module Power : 5.00V
Module Size : 43 x 32mm(1.69x1.26")
Measuring Range : 0 - 14PH
Measuring Temperature : 0 - 60 ℃
Accuracy : ± 0.1pH (25 ℃)
Response Time : ≤ 1min
pH Sensor with BNC Connector
pH2.0 Interface ( 3 foot patch )
Gain Adjustment Potentiometer
Power Indicator LED
Applications of pH Sensor
Water quality testing
- Aquaculture
How To Use Analog pH Sensor with Ardiuno
