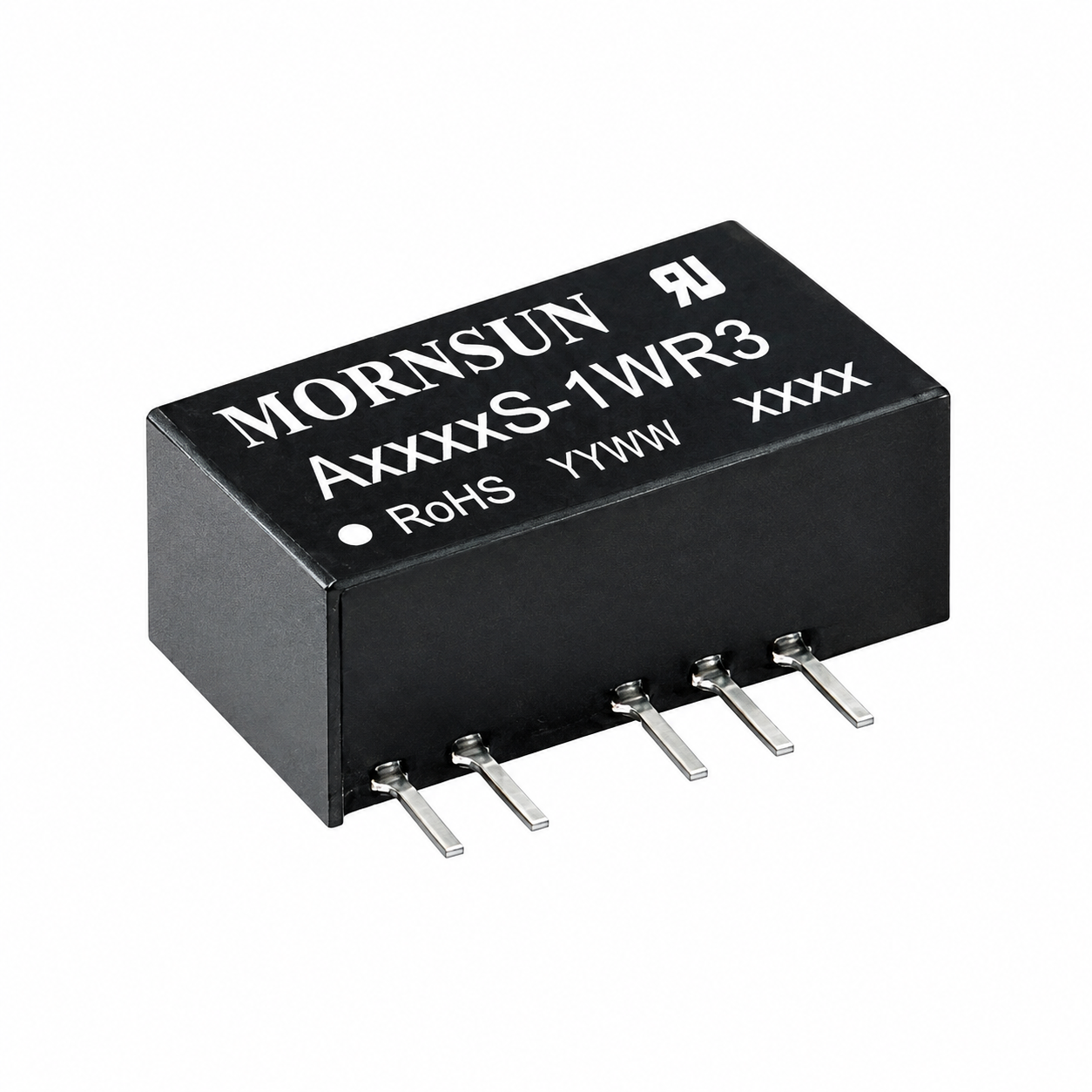

MORNSUN A2412S-1WR3 Isolated DC/DC Converter Module

Name: MORNSUN A2412S-1WR3 Isolated DC/DC Converter Module
Brand: Mornsun
SKU: DAI131
Price: 382.13 INR
Availability: InStock
Rating: 5 (1 reviews)

Write a review | 1 reviews

Stock: 50
Availability: InStock priceValidUntil: 2026-11-15
Brand: Mornsun
SKU: 8986 | DAI131

Rs. 382.13 (inc GST)
Rs.323.84 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MORNSUN A2412S-1WR3 Isolated DC/DC Converter Module

MORNSUN A2412S-1WR3 isolated DC/DC converter module with 24 VDC input, dual ±12 VDC outputs and 1 W rated power.

The MORNSUN A2412S-1WR3 is an isolated DC/DC converter module that changes a nominal 24 VDC input into dual, unregulated ±12 VDC outputs. Its 1 W output suits designs that need separate positive and negative supply rails from one input.

The fixed input and dual output simplify power planning for circuits that use both voltage rails. Self-recovering short-circuit protection helps the module resume operation after a short is removed. Its low no-load input current can also help limit power draw when the output is idle.

Use this 24 V to dual 12 V converter in pure digital circuits, low-frequency analog circuits, relay-driven circuits or data switching circuits. The isolated output supports power separation between the input and these circuit loads.

DNA stocks MORNSUN power modules in our DC to DC Converter Modules range. Contact DNA for help selecting a converter for your design. Check other DC to DC Converter Modules that we have in stock

Indian electronics buyers can contact DNA if they cannot find a part. We can help with imports and support both retail and bulk orders for items such as sensors, capacitors and DC to DC Converter ICs. Contact Us

Features of MORNSUN A2412S-1WR3 Isolated DC/DC Converter Module

Provides isolated DC/DC conversion
Fixed input with dual output rails
Continuous, self-recovering short-circuit protection
Low input current when the output is at no load

Specifications of MORNSUN A2412S-1WR3 Isolated DC/DC Converter Module

Nominal input voltage: 24 VDC
Input voltage range: 21.6–26.4 VDC
Output voltage: Dual ±12 VDC, unregulated
Output current: ±5 mA minimum to ±42 mA maximum per output rail
Rated output power: 1 W
Full-load efficiency: 75% minimum, 81% typical
Input-to-output isolation test voltage: 1500 VDC for 1 minute
Operating temperature: -40°C to +105°C, with derating from 100°C

Applications of MORNSUN A2412S-1WR3 Isolated DC/DC Converter Module

Pure digital circuits
Low-frequency analog circuits
Relay-driven circuits
Data switching circuits

Package Includes

1 X MORNSUN A2412S-1WR3 Isolated DC/DC Converter Module
