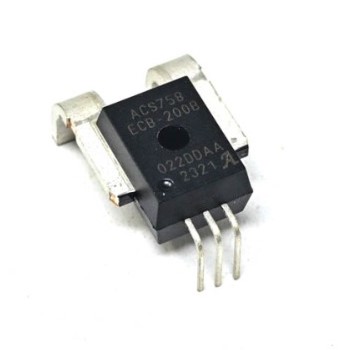

ACS758 Current Sensor DIP IC

ACS758 Current Sensor DIP IC

ACS758 Current Sensor DIP IC for accurate current measurement up to ±50A; features galvanic isolation of 2100 VRMS and low internal resistance.

The ACS758 Current Sensor DIP IC is a high-accuracy Hall-effect sensor designed for precise current measurement. It provides an analog voltage output proportional to the measured current, supporting both unidirectional and bidirectional sensing with ranges up to ±50A. This sensor features galvanic isolation up to 2.1 kV RMS, ensuring safety in various applications. Its low internal resistance minimizes power loss, making it ideal for motor control systems and battery management applications.

With a fast response time of just 3 µs, the ACS758 Current Sensor DIP IC delivers accurate real-time measurements. It operates efficiently within an extended temperature range of -40°C to +150°C, suitable for industrial settings. The compact DIP package allows for easy integration into PCB designs, enhancing your product's reliability and performance.

Ideal for applications such as energy metering and power inverters, the ACS758 Current Sensor DIP IC offers a robust solution for monitoring current in various electronic devices. Explore how this sensor can optimize your current sensing needs and improve overall system efficiency.

At DNA, we offer the ACS758 Current Sensor DIP IC from a trusted manufacturer. This current and voltage sensor is essential for precise current measurement in various applications. Explore our other products in the Current and Voltage Sensor category. Check other "Current and Voltage Sensor" that we have in stock.

Are you looking for specific electronic components? At DNA, we cater to Indian electronics buyers. If you cannot find certain parts, we can import them for you. We also support retail and bulk orders for items like Digital IC, Crystal, Nextion Display, IGBT, Analog IC, and Transistor. Contact Us.

Features of ACS758 Current Sensor DIP IC

• High accuracy Hall-effect sensing
• Bidirectional and unidirectional sensing options
• 2100 VRMS galvanic isolation
• Low internal resistance for minimal power loss
• Fast response time of 3 µs

Specification of ACS758 Current Sensor DIP IC

• Current Range: ±50A
• Supply Voltage: 5V
• Output Type: Analog voltage
• Sensitivity: 40 mV/A
• Isolation Voltage: 2100 VRMS
• Operating Temperature: -40°C to +150°C

Applications of ACS758 Current Sensor DIP IC

• Motor control systems
• Battery management systems
• Power inverters
• Energy metering

Package Includes

• 1 X ACS758 Current Sensor DIP IC
