• ACS758  Current Sensor DIP IC

Product Images are shown for illustrative purposes only and may differ from actual product.

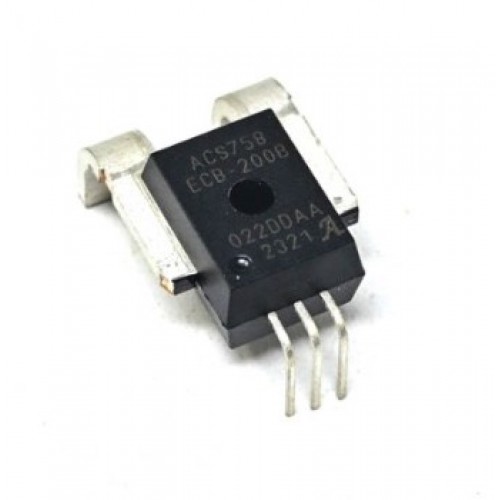

ACS758 Current Sensor DIP IC

  • Stock: Out Of Stock
  • SKU: 9113 | DAD340
  • Rs. 743.40 (inc GST)
    Rs.630.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ACS758  Current Sensor DIP IC

ACS758  Current Sensor DIP IC

The ACS758 is a high-accuracy, Hall-effect-based linear current sensor that provides analog voltage output proportional to the measured current. It supports both unidirectional and bidirectional sensing, with current ranges up to ±50A or more depending on the variant. The sensor offers galvanic isolation up to 2.1 kV RMS and integrates a low-resistance conductor for minimal power loss. With fast response time and low output noise, it is ideal for motor control, power inverters, battery management, and industrial automation. Housed in a compact DIP package, it is easy to mount and integrate into PCB designs. Available in both 5V and 3.3V versions.

DNA solutions, Nashik has various types of Sensor IC's. Check out our complete collection of Sensor IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ACS758  Current Sensor DIP IC

  • Hall-effect based linear current sensing with analog voltage output
  • Available in bidirectional and unidirectional sensing options
  • High galvanic isolation: up to 2100 VRMS between the sensed current and output
  • Low internal resistance for minimal power loss
  • Fast response time: as low as 3 µs for accurate real-time measurements

Specifications of ACS758  Current Sensor DIP IC

  • Current Range: ±50A
  • Supply Voltage: 5V
  • Output Type: Analog voltage
  • Sensitivity: 40 mV/A
  • Isolation Voltage: 2100 VRMS
  • Operating Temperature: -40°C to +150°C

Applications of ACS758  Current Sensor DIP IC

  • Motor control systems
  • Battery management systems
  • Power inverters
  • Energy metering

    Package Includes

          1 x ACS758  Current Sensor DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
