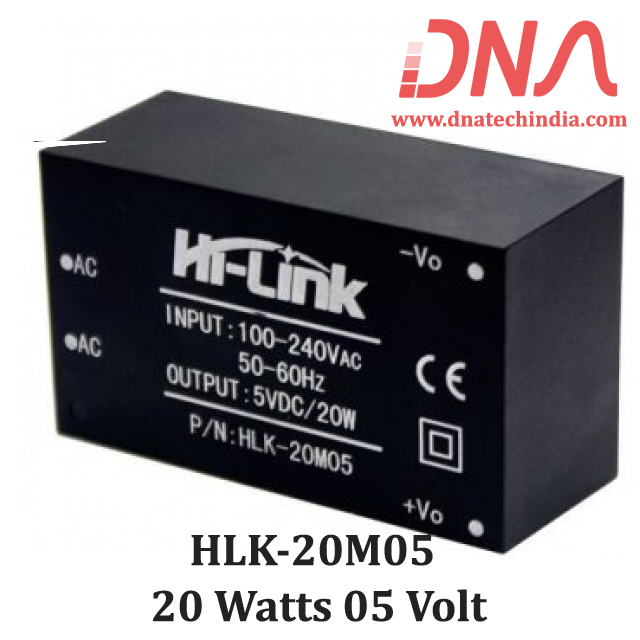

Hi-Link HLK-20M05 20 W 5 V AC-DC Power Supply Module

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-12-20

  • Brand: Hi-Link
  • SKU: 2593 | DAE092

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 415.36 (inc GST)
    Rs.352.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hi-Link HLK-20M05 20 W 5 V AC-DC Power Supply Module

HLK-20M05 AC-DC power supply module with 20 W output, 5 V DC, 4 A rated current and an 85–265 V AC input range.

The Hi-Link HLK-20M05 is an AC-DC power supply module that converts AC input to a regulated 5 V DC output. It delivers up to 20 W and a rated output current of 4 A, making it suitable for designs that need a compact board-level power source.
Its input-to-output isolation separates the input and output sides. Output over-current and short-circuit protection help guard the powered circuit; after a short circuit is removed, the module returns to normal operation. Natural cooling and low no-load power loss support integration into enclosed electronic designs.
Use the HLK-20M05 in smart home systems, automation control, communication equipment and instruments. Its integrated AC-DC conversion can simplify power supply design where these applications need a 5 V rail.
DNA supplies Hi-Link products for electronics design and repair. Explore the Hi-Link Power Supply Module range to find a suitable option for your project or production needs. Check other Hi-Link Power Supply Module that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders. Ask us about related items such as Hongfa Relay, Programmer, Sensor, Nextion Display, Digital IC or Resistor. Contact Us

Features of Hi-Link HLK-20M05 20 W 5 V AC-DC Power Supply Module

  • Converts AC input to regulated DC output
  • Input-to-output isolation
  • Output short-circuit protection with automatic recovery
  • Output over-current protection
  • Natural cooling
  • Low no-load power loss

Specifications of Hi-Link HLK-20M05 20 W 5 V AC-DC Power Supply Module

  • Rated output power: 20 W
  • Rated output voltage: 5 V DC
  • Rated output current: 4000 mA
  • Input voltage range: 85–265 V AC or 120–350 V DC
  • Operating temperature: -25 to +60 °C
  • Dimensions: 57.5 × 33.5 × 23.8 mm
  • Efficiency at full output load: ≥80% at 115 V AC and ≥82% at 230 V AC

Applications of Hi-Link HLK-20M05 20 W 5 V AC-DC Power Supply Module

  • Smart homes
  • Automation control
  • Communication equipment
  • Instruments

Related Links for Hi-Link HLK-20M05 20 W 5 V AC-DC Power Supply Module

Package Includes

  • 1 X Hi-Link HLK-20M05 20 W 5 V AC-DC Power Supply Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
