Product Images are shown for illustrative purposes only and may differ from actual product.

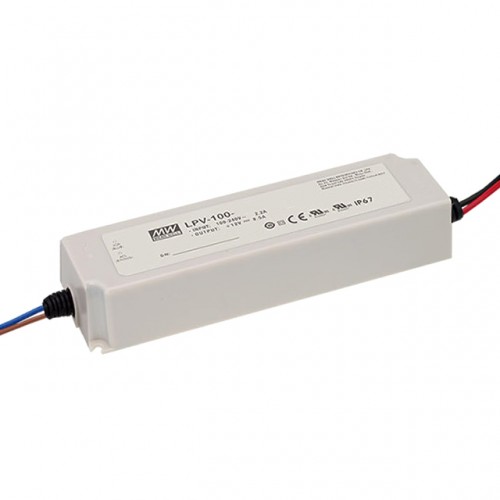

LPV-100-36 Meanwell LED Driver
- Stock: Out Of Stock
- SKU: 8925 | DAI260
-
Rs. 2,548.80 (inc GST)
Rs.2,160.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
LPV-100-36 Meanwell LED Driver
LPV-100-36 Meanwell LED Driver
The Mean Well LPV-100-36 is a 100W constant voltage LED driver with a 36V DC output and 2.8A current. Designed with an IP67-rated waterproof housing, it is ideal for both indoor and outdoor LED applications. It operates across a wide input range of 90–264V AC and offers high efficiency up to 88%. The unit includes protections against short circuit, overload, and over-voltage. Its compact size and UL/CE certifications make it reliable for signage, lighting, and architectural installations.
DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of LPV-100-36 Meanwell LED Driver
- Constant voltage output: 36V DC, 100W max power
- Wide AC input range: 90–264V AC
- High efficiency up to 88%
- Compact size and lightweight design
- UL, CE, and RoHS certified for safety and compliance
- Suitable for LED lighting, signage, and outdoor applications
- Operates in temperatures from -25°C to +70°C
- Maintenance-free and reliable for long-term use
Specifications of LPV-100-36 Meanwell LED Driver
- Operation Mode: Constant Voltage (CV)
- Output Current-Channel 1: 2.8 A
- Output Voltage-Channel 1: 36 VDC
- Mounting Style: Chassis Mount
- Series: LPV-100
- IP Rating: IP67
- Brand: MEAN WELL
- Open Frame/Enclosed: Enclosed
- Product Type: LED Power Supplies
Applications of LPV-100-36 Meanwell LED Driver
- LED Strip Lighting
- Signage and Channel Letters
- Architectural Lighting
- Display Lighting
- Industrial Control Panels
Package Includes
1 x LPV-100-36 Meanwell LED Driver
