  • Meanwell SMPS LRS-35-5

Product Images are shown for illustrative purposes only and may differ from actual product.

Meanwell SMPS LRS-35-5


Write a review | 0 reviews

  • Stock: Out Of Stock
  • Brand: Meanwell
  • SKU: 2492 | DAC656
  • Rs. 992.76 (inc GST)
    Rs.841.32 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

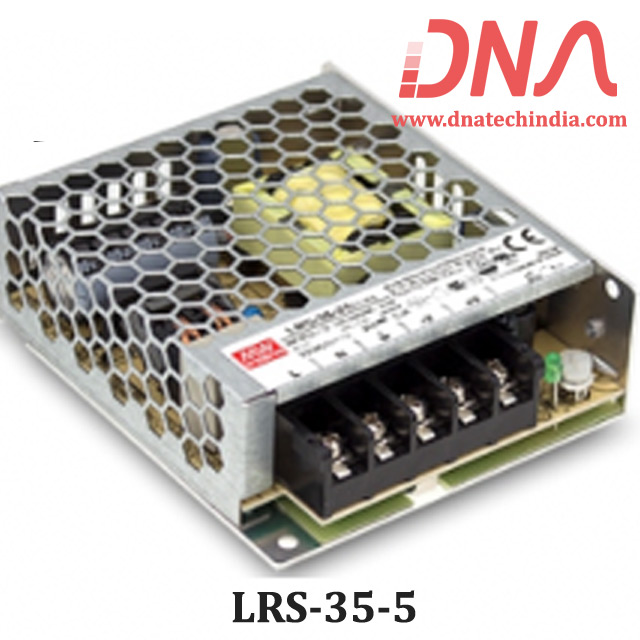

Meanwell LRS-35-5 Power Supply

5 Volts, 35 Watt Single Output Switching Power Supply from Meanwell

LRS-35 Series is a 35 Watt Single-Output Encolsed type power supply with 30mm of profile, Design. Adopting the Full Range 85~264 VAC input.The entire Series Provides an Output voltage  Line of 5V, 12V, 15V, 24V, 36V And 48 Volts

LRS-35-5 is a high quality Industrial Grade SMPS fom Meanwell. LRS35-5 SMPS is a 35 watt SMPS and gives 5 volts output. Meanwell LRS-35 -5 switching power supply comes in mesh type casing and is very easy to mount.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Check out our Complete variety of Meanwell SMPS that we have.

Features of LRS35-5 Meanwell SMPS

  • Protections : Short circuit / Overload / Over voltage / Over temperature
  • Universal AC input / Full range
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105  long life electrolytic capacitors
  • Withstand 300 VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability

    • Specification for LRS35-5 Meanwell Power Supply

    OUTPUT

    Wattage

    Voltage

    Max Current

    35  Watt

    5 Volts

    7 Ampere

    INPUT

    Efficiency

    Frequency Range:

    81.5 %

    47 ~ 63Hz

    PROTECTION

    Overloaded

    Over Volt

    110 ~ 180% Rated Output Power.

    5.75 ~ 6.9 Volts

    ENVIRONMENT

    Working Temp:

    Working Humidity:

    Storage Temp:

    Vibration:

    -30 ~ +70°C

    20 ~ 90% RH non-condensing

    -40 ~ +85, 10 ~ 95% RH

    10 ~ 500Hz, 5G 10min./1cycle, period for  60min. each along X, Y, Z axes
