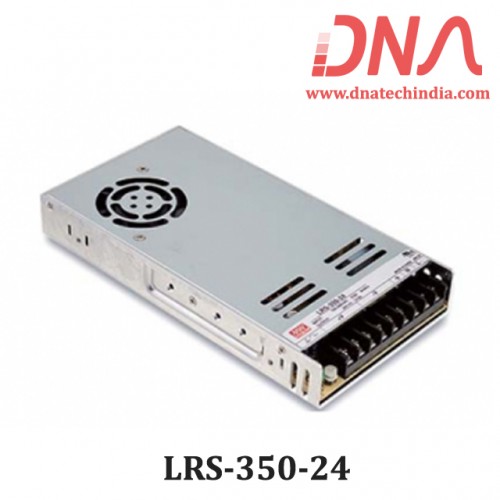

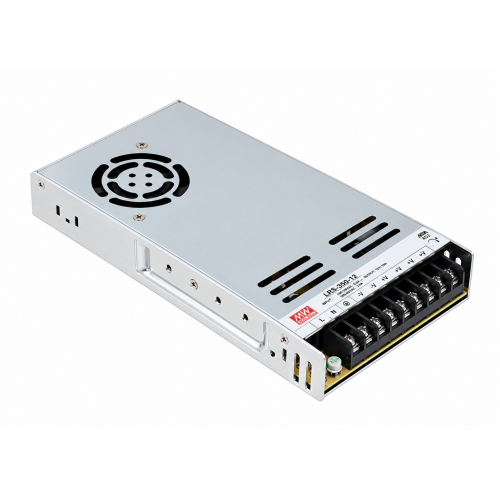

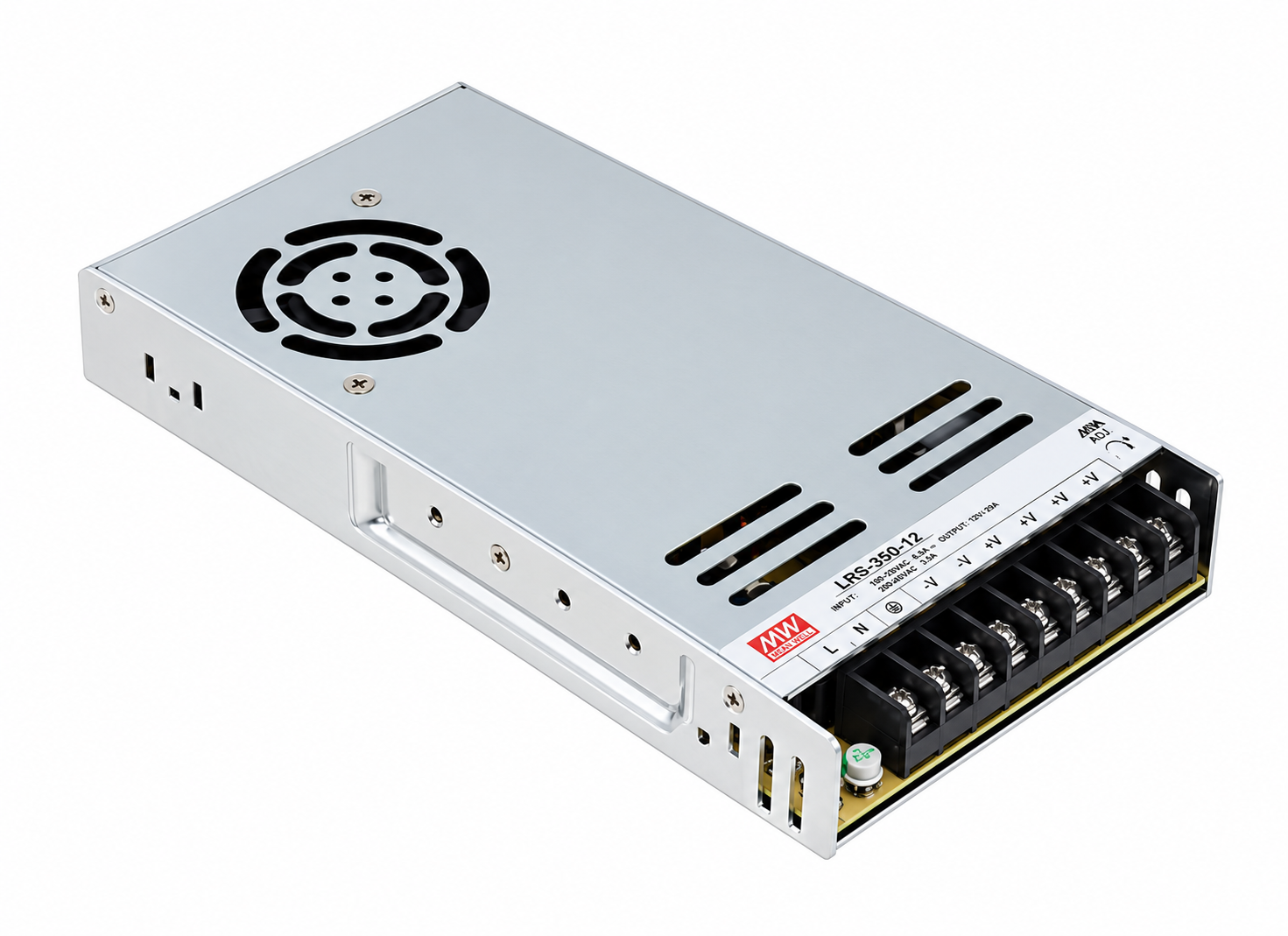

Meanwell LRS-350-24 SMPS Power Supply - 350W 24V

Meanwell LRS-350-24, 350W 24V power supply, 14.6A output, high efficiency, with built-in protection features.

The Meanwell LRS-350-24 SMPS Power Supply provides a stable 24V DC output at 14.6A. It is designed for various industrial applications, ensuring optimal performance with an efficiency rating of up to 89%. This power supply operates within an AC input range of 85-264VAC, making it suitable for diverse environments.

Features of the Meanwell LRS-350-24 SMPS Power Supply include built-in protection against short circuits, overload, and overvoltage. The integrated long-life DC cooling fan ensures effective heat management, operating efficiently in temperatures from -25°C to +70°C. Its compact design allows for chassis mounting, fitting seamlessly into control panels and machinery.

Ideal for powering 24V motors, LED systems, and CCTV installations, the Meanwell LRS-350-24 SMPS stands as a reliable choice for industrial automation. Explore this product to enhance your electronic systems with quality power solutions.

At DNA, we offer a comprehensive range of Meanwell SMPS products. Discover quality power solutions tailored for your needs. Check other Meanwell SMPS that we have in stock.

If you need specific components like Analog ICs, Digital ICs, or Inductors, reach out to us. We can import items not in stock and support retail as well as bulk orders. Contact Us.

Features of Meanwell LRS-350-24 SMPS

• AC input range selectable by switch: 85~132VAC / 170~264VAC
• Output: 24 Volt DC, 14.6 Ampere, 350.4 Watt
• High efficiency up to 89%
• Built-in long-life DC cooling fan with speed control
• Short circuit, overload, overvoltage, and overtemperature protection
• Built-in remote sense function for voltage compensation
• LED indicator for power on
• Built-in EMI filter with low ripple noise
• Withstand 5G vibration test
• Low profile and compact design

Specification of Meanwell LRS-350-24 SMPS

• Output Voltage: 24 Volt DC
• Rated Current: 14.6 Ampere
• Rated Power: 350.4 Watt
• Voltage Adj. Range: 21.6 – 28.8 Volt
• Input Voltage Range: 85 – 264VAC / 120 – 370VDC (selectable by switch)
• Frequency Range: 47 – 63 Hz
• Efficiency (Typ.): 89%
• Inrush Current: 60A at 230VAC
• Hold up Time: 16ms at 230VAC
• Cooling: Built-in fan with automatic speed control
• Operating Temperature: –25°C to +70°C (with derating)
• Protection: Overload, overvoltage, short circuit, overtemperature
• Dimensions (L×W×H): 215 × 115 × 30 mm
• Mounting Type: Chassis mount (screw terminals)
• Compliance: UL, CE, EAC certified

Applications of Meanwell LRS-350-24 SMPS

• Industrial automation equipment
• 24V motors, solenoids, and relay systems
• LED lighting and signage systems
• CCTV and security systems
• Communication equipment
• DC-powered instrumentation
• Control panel and embedded systems

Related Links for Meanwell LRS-350-24 SMPS Power Supply - 350W 24V

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Meanwell LRS-350-24 SMPS
