• A0515S-1WR3 Mornsun DC-DC converter

Product Images are shown for illustrative purposes only and may differ from actual product.

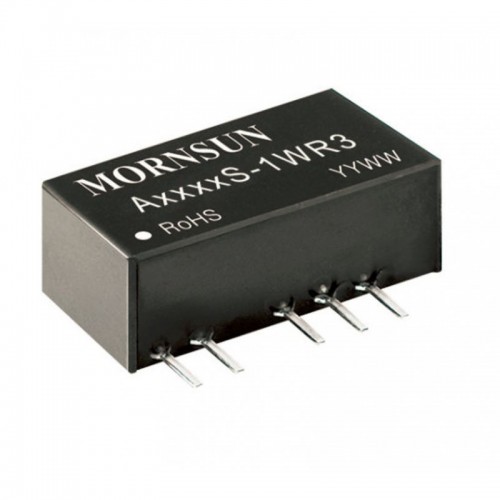

A0515S-1WR3 Mornsun DC-DC converter

  • Stock: 25
  • Brand: Mornsun
  • SKU: 3963 | DAG663

Availability: InStock priceValidUntil: 2025-09-28

  • Rs. 257.83 (inc GST)
    Rs.218.50 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

A0515S-1WR3 Mornsun DC-DC converter

A0515S-1WR3 Mornsun  DC-DC converter

The A0515S-1WR3 is a high-efficiency, isolated, and unregulated DC-DC converter. It is designed for use in a wide range of applications requiring isolated voltage conversion. This compact converter is encapsulated in a SIP (Single Inline Package) and is well-suited for use in industrial control, instrumentation, communication systems, and other applications requiring reliable and stable power conversion

DNA solutions, Nashik has various types of Mornsun's. Check out our complete collection of Mornsun's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of A0515S-1WR3 Mornsun DC-DC converter

  • Continuous short-circuit protection
  • No-load input current as low as 8mA
  • Operating ambient temperature range: -40℃to+105℃
  • High efficiency up to 85%
  • I/O isolation test voltage: 1.5k VDC
  • Industry standard pin-out

Specification of A0515S-1WR3 Mornsun DC-DC converter

  • Input Voltage Range: 4.5V to 5.5V DC
  • Output Voltage: 15V DC
  • Output Current: 66mA
  • Output Power: 1W
  • Efficiency: 86% (typical)
  • Isolation Voltage: 1500VDC (input to output)
  • Ripple & Noise: 100mVp-p (max)
  • Line Regulation: ±1.2% (typical)
  • Load Regulation: ±10% (10% to 100% load)
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -55°C to +125°C
  • Cooling: Free air convection
  • Package: SIP (Single Inline Package)
  • Dimensions: 19.50 x 6.00 x 9.50 mm
  • Weight: 2.2g (approx)

    Related links

    A0515S-1WR3 Mornsun datasheet

    Package Includes

    1 x A0515S-1WR3 Mornsun DC-DC converter

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
