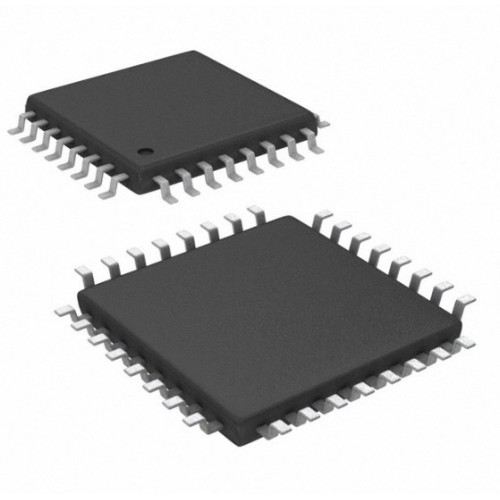

ADS124S08IPBS 24 Bit Analog to Digital Converter SMD IC (LQFP 32)

ADS124S08IPBS 24 Bit Analog to Digital Converter SMD IC (LQFP 32)

The ADS124S08IPBS is a low-noise, high-resolution ADC that integrates key functionality to simplify designs and reduce system costs for high-performance measurement applications. The ADC uses a delta-sigma (ΔΣ) architecture, providing excellent noise performance and precision across a wide range of signal conditions. It is particularly well-suited for sensor measurement applications that require multiple input channels, such as temperature, pressure, or bridge sensors.

DNA solutions, Nashik has various types of AC-DC Converter IC's. Check out our complete collection of AC-DC Converter IC's.

• High Resolution and Accuracy: 24-bit resolution for high-precision measurements

• Low Power Consumption: Ideal for battery-powered or low-power applications

• Multi-Channel Analog Inputs: Supports up to 16 single-ended or 8 differential inputs

• Programmable gain amplifier (PGA) with gains up to 128

• Internal voltage reference for consistent measurements

Specifications of ADS124S08IPBS 24 Bit Analog to Digital Converter SMD IC (LQFP 32)

• Resolution: 24-bit

• Channels: 16 single-ended or 8 differential

• Data Rate: Up to 4 kSPS

• Input Voltage Range: ±2.5V (dependent on reference voltage)

• Noise-Free Bits: Up to 21.5 bits (typical at low data rates)

• Power Supply: 2.7V to 5.5V

• Current Consumption: ~300 µA (normal mode, 3V supply)

• Gain Options: 1, 2, 4, 8, 16, 32, 64, 128

• Operating Temperature Range: -40°C to +125°C

Applications of ADS124S08IPBS 24 Bit Analog to Digital Converter SMD IC (LQFP 32)

• Industrial Sensor Measurement

• Medical Devices

• Instrumentation

• Energy and Utility

• Automotive

• Consumer Electronics

Package Includes

      1 x ADS124S08IPBS 24 Bit Analog to Digital Converter SMD IC (LQFP 32)
