ATmega48A-AU SMD Microcontroller

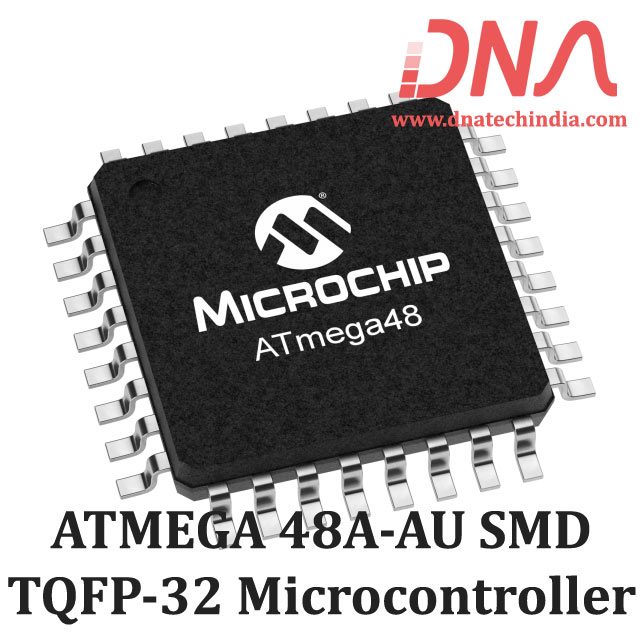

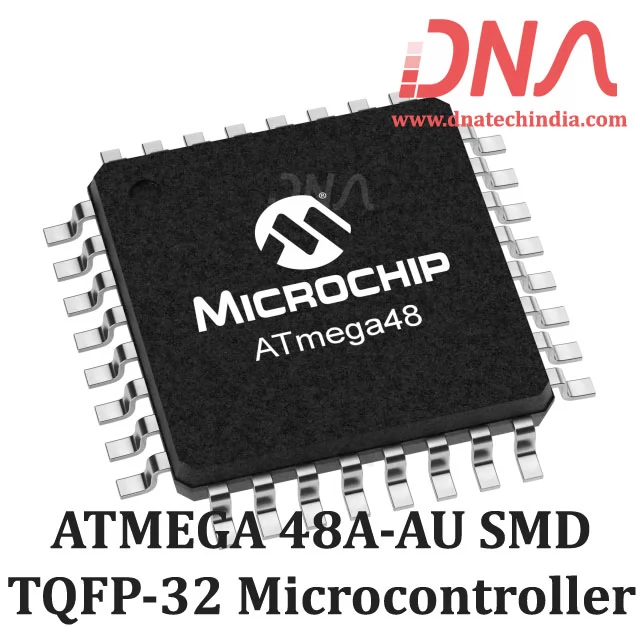

Atmega48A-AU SMD Microcontroller in TQFP32 package

ATmega48 microcontroller comes in TQDP32 package. ATmega48 microcontroller is a high performance Microchip 8-bit AVR® RISC-based picoPower® microcontroller combines 4 KB ISP Flash memory, 256B EEPROM, 512B SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented Two-Wire serial interface, SPI serial port, 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.

By executing powerful instructions in a single clock cycle, ATmega48A-AU microcontroller achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed.

Features of Atmega48P SMD Microcontroller

• High performance, low power AVR® 8-bit microcontroller

• Advanced RISC architecture

• 131 powerful instructions – most single clock cycle execution

• 32x8 general purpose working registers

• 4 Kbytes of in-system self-programmable flash

• Optional boot code section with independent lock bits

• 256 Bytes EEPROM (ATmega48/88/168)

• 512 byte internal SRAM

• Two 8-bit Timer/Counters with separate prescaler and compare mode

• One 16-bit Timer/Counter with separate prescaler, compare mode, and capture mode

• Real time counter with separate oscillator

• Six PWM channels

• 8-channel 10-bit ADC

• Power-on reset and programmable brown-out detection

• Internal calibrated oscillator

• External and internal interrupt sources

• Five sleep modes: Idle, ADC noise reduction, power-save, power-down, and standby
