ALPHANUMERIC LCD 40x4

  • Product Code: 413
  • Availability: Out Of Stock
  • Price :

    Rs.2,006.00 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

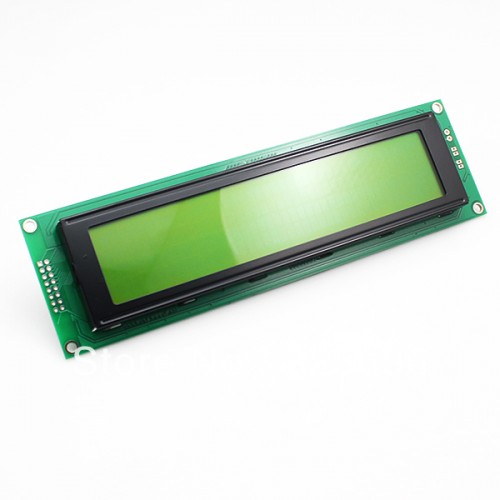

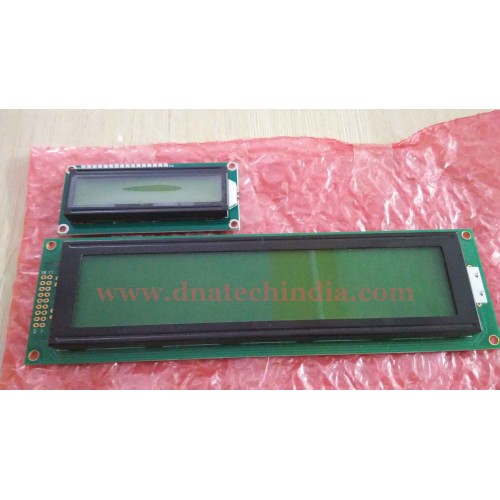

40x4 ALPHANUMERIC LCD Display

This is a big 40x4 LCD display. It is 40 character wide and has 4 rows. It supports both 4 bit and 8 bit interface. And is based on controller which is HD44780 compatible. It has yellow green color backlight whose intensity can be controlled using PWM technique or a resistor. It can be easily interfaced to 8051, PIC, AVR microcontroller. It can also be interfaced to Arduino, Raspberry PI and other microcontrollers.

Specifications Of ALPHANUMERIC LCD 40x4

  • Number of Characters: 40 characters x 4 Lines
  • Module dimension: 190.0 x 54.0 mm
  • View area: 147 .5 x 29.5.mm2
  • Active area: 140.45 x 20.32
  • Character size: 2.78 x 4.89 mm2

Interface Pin Function

Pin No.

Symbol

Description

1~8

DB7~DB0

Data bus line

9

E1

Enable signal

10

R/W

Read/Write select signal

11

RS

Data/ Instruction  select signal

12

VO

Contrast Adjustment

13

VSS

Ground

14

VDD

Power supply for logic

15

E2

Enable signal

16

NC

No connection

17A

Power supply for B/L +

18K

Power supply for B/L -
