6 Pin 128x64 White OLED Display Module


Write a review | 2 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-05-24

  • Brand: Generic
  • SKU: 1012 | DAA882

Availability: InStock priceValidUntil: 2026-05-24

  • Rs. 345.15 (inc GST)
    Rs.292.50 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

6Pin 128x64 White OLED Display

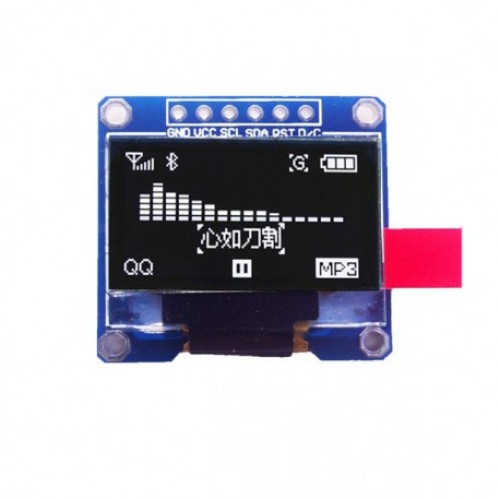

This is a 0.96 inch white OLED display module.

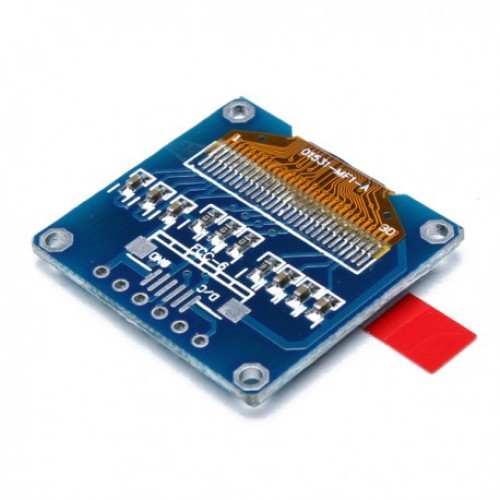

The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128x64. The package includes display board,display, 6 pin male header presoldered to board.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

OLED monochrome 128x64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption, White color.

Features of 6-Pin OLED

  • Super High Brightness (Adjustable)

  • Super High Contrast (Adjustable)

  • Embedded Driver/Controller

  • Display size : 0.96"

  • Resolution radio :128 x 64

  • Interface modes : SPI

  • working voltage : 3.3V

  • Control Chip : SSD1306

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
