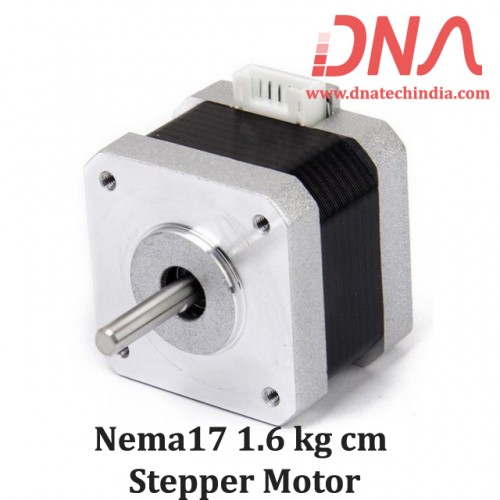

Nema17 1.6 kgcm Stepper motor

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-22
SKU: 1835 | DAC456

Rs. 728.06 (inc GST)
Rs.617.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Nema17 1.6 kg cm Stepper Motor

The Nema17 1.6 kgcm Stepper motor can provide 1.6 kg-cm of torque at 0.31 Ampere current per phase.

The Stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The Nema17 1.6 kgcm Stepper motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.

They are very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc.

It is a brushless DC motor, so the life of this motor is dependent upon life of the bearings. The position control is achieved by a simple Open Loop control mechanism which doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear etc. and especially avoiding stall or slip.

We have Various sizes of Stepper Motors.Check out our complete collection of Stepper Motors

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features Of Nema17 1.6kgcm Stepper motor

Input pulse decides the rotation angle of the motor.
High accuracy of around 3 to 5% a step.
Provides good starting, stopping and reversing.
Control of this motor is less costly because of exclusion of complex control circuitry.
The speed is proportional to the frequency of the input pulses.

Specifications Of Nema17 1.6 kgcm Stepper motor

Model : NEMA 17
Motor Part Number : JK42HS34-0316
Motor Type : Single Shaft
Step Angle : 1.8°
Holding Torque : 1.6 kg-cm
Operating Voltage : 12~16 V
Supply Current (A) : 0.31 A/Phase
No. of Leads : 6
Inductance : 21 mH/Phase
Resistance : 38.5 O/Phase
Rotor Inertia : 34 gm-cm
Weight (gm) : 220
Frame Size (mm) : 42 x 42
Shaft Diameter (mm) : 5
Shaft Length (mm) : 20
Cable Length : 30 mm

Checkout our collection of various types of NEMA17, NEMA23 & NEMA34 Stepper motors.
