BZT52C13 Zener Diode SMD IC

BZT52C13 Zener Diode SMD IC

BZT52C13 Zener Diode SMD IC for voltage regulation, 13V Zener voltage, 500 mW power dissipation.

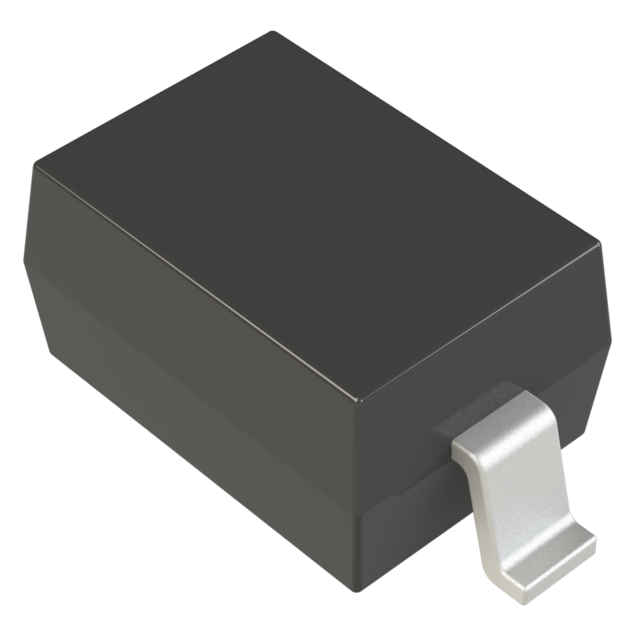

The DNA BZT52C13 Zener Diode SMD is designed for effective voltage regulation and protection in electronic circuits. With a Zener voltage of 13V and a power dissipation capability of 500 mW, this diode ensures stable voltage across sensitive components, making it ideal for precision reference circuits. Its compact SOD-123 package allows for efficient use in space-constrained designs, particularly in portable and battery-powered devices.

This BZT52C13 Zener Diode SMD features a low reverse leakage current of ≤ 0.1 µA at 9.4V, contributing to reliable performance in various applications such as power supplies and surge protection. The diode operates within a temperature range of –65°C to +150°C, ensuring its functionality in diverse environments.

For those working with automated SMD assembly processes, the DNA BZT52C13 Zener Diode SMD is compatible and easy to integrate into your designs. Explore its potential in voltage regulation, reference voltage generation, and low-current voltage clamping applications.

Explore the quality of Diodes & Transistors at DNA. The DNA BZT52C13 Zener Diode SMD enhances voltage regulation in your projects. Check other Diodes & Transistors that we have in stock.

If you are searching for specific electronic components, reach out to us at DNA. We can assist with imports if certain parts are unavailable. We support retail and bulk orders. Explore related items like Crystal, Nextion Display, Microcontroller, Digital IC, Programmer, and Sensor. Contact Us.

Features of DNA BZT52C13 Zener Diode SMD

• Zener Voltage: 13V
• Power Dissipation: 500 mW
• Tolerance: ±5%
• Operating Temperature: –65°C to +150°C
• Package Type: SOD-123
• Reverse Leakage Current: ≤ 0.1 µA at 9.4V

Specification of DNA BZT52C13 Zener Diode SMD

• Zener Voltage: 13V ±5%
• Test Current: 5 mA
• Polarity: Cathode marked with band
• Mounting Style: Surface Mount (SMD)
• Operating Temperature: –65°C to +150°C
• Package Type: SOD-123

Applications of DNA BZT52C13 Zener Diode SMD

• Voltage regulation
• Reference voltage generation
• Surge protection
• Low-current voltage clamping
• Portable and battery-powered devices

Package Includes

• 1 X DNA BZT52C13 Zener Diode SMD
