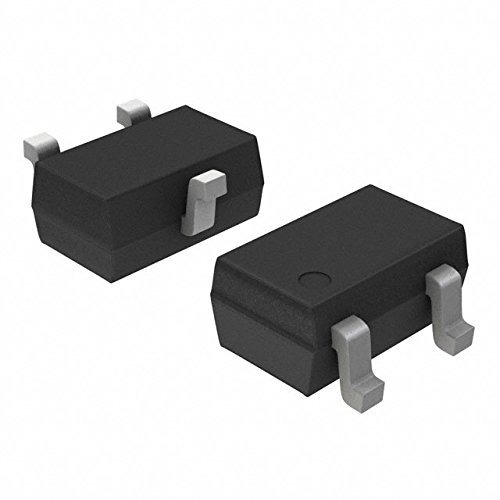

BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

The BAV99 is a dual common-cathode switching diode designed for high-speed switching applications. It is housed in a SOT-23 package, making it suitable for surface-mount technology (SMT) applications. The diodes in the BAV99 are connected with a common cathode, which allows for fast switching in circuits requiring such a configuration. It is primarily used in high-speed switching, clamping, protection, and rectification tasks.

DNA solutions, Nashik has various types of Diode's. Check out our complete collection of Diode's.

• Fast Switching Speed


• Low Capacitance: Ensures minimal signal distortion and higher performance in RF and digital circuits.


• Surface-Mount Package Ideally Suited for Automated Insertion


• For General-Purpose Switching Applications


• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)


• Halogen and Antimony Free. “Green” Device (Note 3)


• The BAV99Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.


Applications of BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

• High-Speed Switching Circuits: Ideal for circuits where fast signal processing is required, such as in digital logic circuits.


• Clamping and Protection: Used for voltage clamping and protection of sensitive components in high-speed circuits.


• Signal Routing: Useful in circuits where rapid switching of signals is necessary, such as RF or digital communication systems.


• Rectification: Can be used in low-power rectification tasks due to its low forward voltage drop.


Package Includes

• 1 x BAV99 SOT23 High Speed Dual Surface Mount Switching Diode
