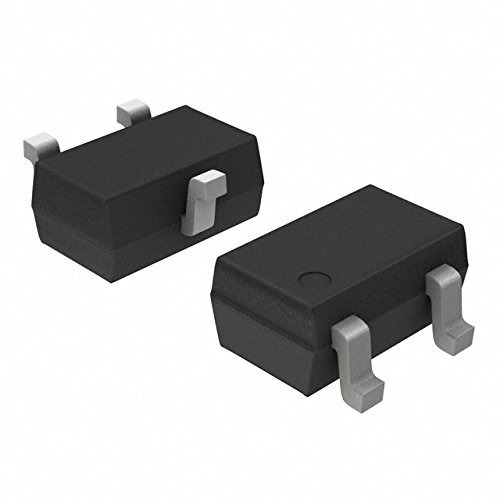

Product Images are shown for illustrative purposes only and may differ from actual product.

BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-03-08

  • SKU: 7491 | DAD136

Availability: InStock priceValidUntil: 2026-03-08

  • Rs. 5.90 (inc GST)
    Rs.5.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

The BAV99 is a dual common-cathode switching diode designed for high-speed switching applications. It is housed in a SOT-23 package, making it suitable for surface-mount technology (SMT) applications. The diodes in the BAV99 are connected with a common cathode, which allows for fast switching in circuits requiring such a configuration. It is primarily used in high-speed switching, clamping, protection, and rectification tasks.

DNA solutions, Nashik has various types of Diode's. Check out our complete collection of Diode's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

  • Fast Switching Speed
  • Low Capacitance: Ensures minimal signal distortion and higher performance in RF and digital circuits.
  • Surface-Mount Package Ideally Suited for Automated Insertion
  • For General-Purpose Switching Applications
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • The BAV99Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.

Applications of BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

  • High-Speed Switching Circuits: Ideal for circuits where fast signal processing is required, such as in digital logic circuits.
  • Clamping and Protection: Used for voltage clamping and protection of sensitive components in high-speed circuits.
  • Signal Routing: Useful in circuits where rapid switching of signals is necessary, such as RF or digital communication systems.
  • Rectification: Can be used in low-power rectification tasks due to its low forward voltage drop.

    Package Includes

    • 1 x BAV99 SOT23 High Speed Dual Surface Mount Switching Diode

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
