Product Images are shown for illustrative purposes only and may differ from actual product.
EMI-21 Power Inlet With Fuse Holder (Elcom)
-
Rs. 57.82 (inc GST)
Rs.49.00 + GSTQty :
-
Quantity Pricing (inc GST)
5 + 53.22 25 + 48.97 50 + 45.08
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
EMI-21 Power Plug with Fuse Holder

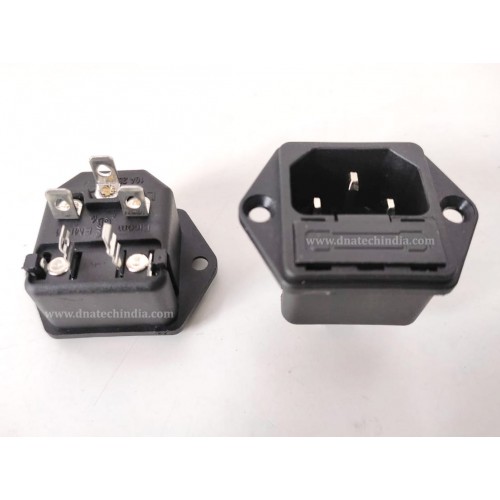

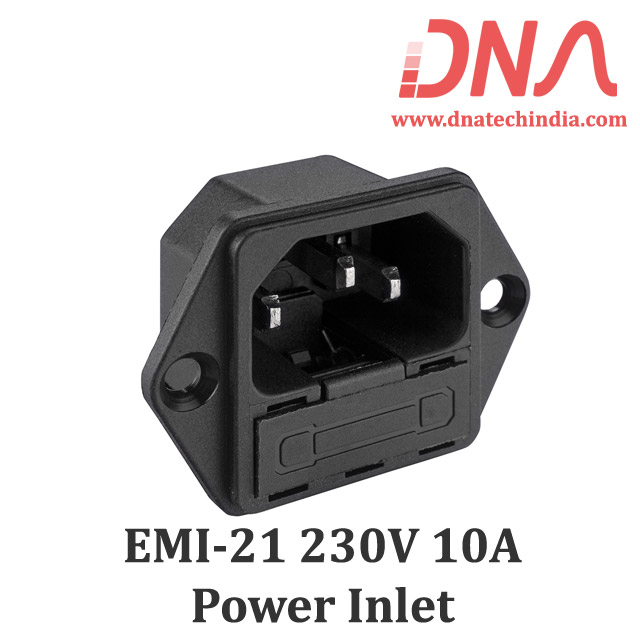

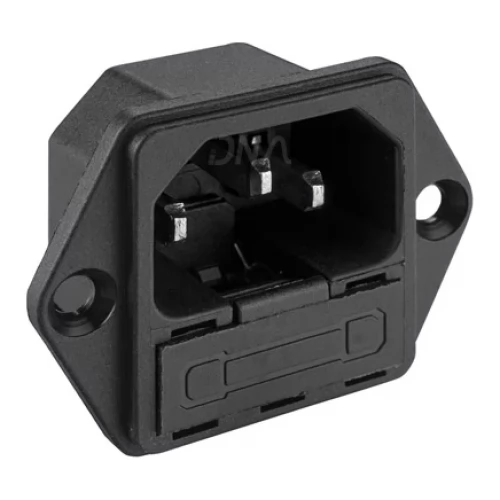

Elcom EMI-21 10 Ampere 230 volts Power Inlet with Fuse Holder
This is a Panel mount 230 volts, 10 Ampere 3 Pole Male power plug with fuse holder.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specifications of EMI-21 Power Plug
- Product Category : IEC INLET
- V/A Rating: 10 Ampere 250 Volts AC
- Contact Resistance (Initial): 20m ohms max.
- Insulation Resistance At 500 V DC: 1000 M ohms min.
- H.V.Break Down Test (For 1-Minute): 2 KV AC
- Contact Resistance (Initial): 10 m ohms Max
- Body: Nylon-6, GF20%, V-2
- Terminals: Brass, Tin/Nickel plating
- Contacts: Copper Alloy, Tin/Nickel plating
- Mounting: Panel, Screw-type
- Terminals: Solder-type / Fast-On
- Permissible Temp. With/Without Load: -25°C To 70°C
- Permissible Temp. For Soldering: 270°C for 5 Sec. Max.
Package Includes
1 x EMI-21 Power Inlet With Fuse Holder (Elcom)
