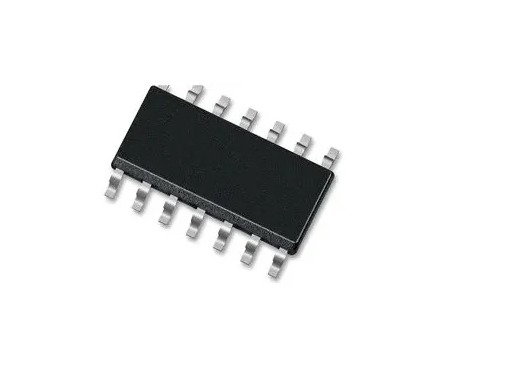

CD4069UBM CMOS hex inverter IC

CD4069UBM CMOS Hex Inverter IC

CD4069UBM Hex Inverter IC, 6 gates, 3V to 15V supply range, low power consumption.

The CD4069UBM CMOS Hex Inverter IC is an essential component in digital and analog signal processing. It features six independent unbuffered inverter gates, ideal for applications requiring reliable logic inversion and waveform shaping. With a supply voltage range of 3V to 15V, it provides flexibility for various design needs. Its low power consumption and high noise immunity make it suitable for noisy environments.

Engineered with CMOS technology, the CD4069UBM CMOS Hex Inverter IC ensures efficient performance and built-in protection against electrostatic discharge. This feature enhances reliability in critical applications such as oscillators, amplifiers, and level shifting. Experience enhanced linearity and performance in your designs with this versatile IC.

Whether you are designing digital logic circuits or analog signal processors, the CD4069UBM CMOS Hex Inverter IC is a dependable choice. Explore our collection of 4000 Series ICs to find more components that suit your requirements.

Explore the range of reliable 4000 Series IC's at DNA. The CD4069UBM from our trusted manufacturer is perfect for your electronic projects. Check other '4000 Series IC's' that we have in stock.

If you are looking for specific electronic components, reach out to us. We can import parts not currently in stock and support you in both retail and bulk purchases. Check out related items like Super Capacitors, Sensor Modules, and HMI Displays. Contact Us.

Features of CD4069UBM CMOS Hex Inverter IC

• Low power operation
• Supply voltage range of 3V to 15V
• High noise margin
• Protection against electrostatic discharge
• Unbuffered gates for analog handling

Specification of CD4069UBM CMOS Hex Inverter IC

• Logic Type: Hex Inverter (Unbuffered)
• Supply Voltage (VDD): 3V to 15V
• Input Voltage Range: 0V to VDD
• Output Voltage Range: 0V to VDD
• Max Input Current: ±10 µA
• Propagation Delay: 50 ns

Applications of CD4069UBM CMOS Hex Inverter IC

• Digital Logic Inversion
• Oscillators and Signal Generators
• Waveform Shaping
• Amplifiers
• Level Shifting

Related Links for CD4069UBM CMOS Hex Inverter IC

• Other Products from 4000 Series IC's Category

Package Includes

• 1 X CD4069UBM CMOS Hex Inverter IC
