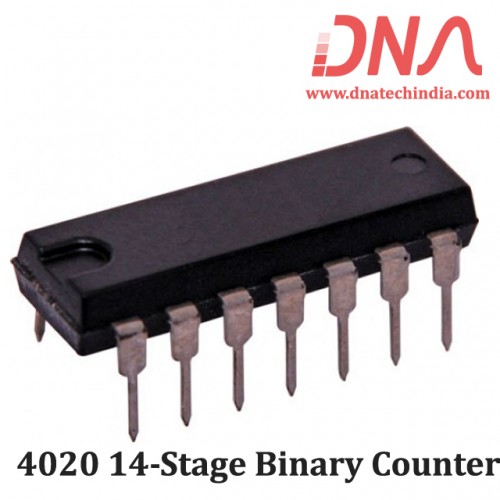

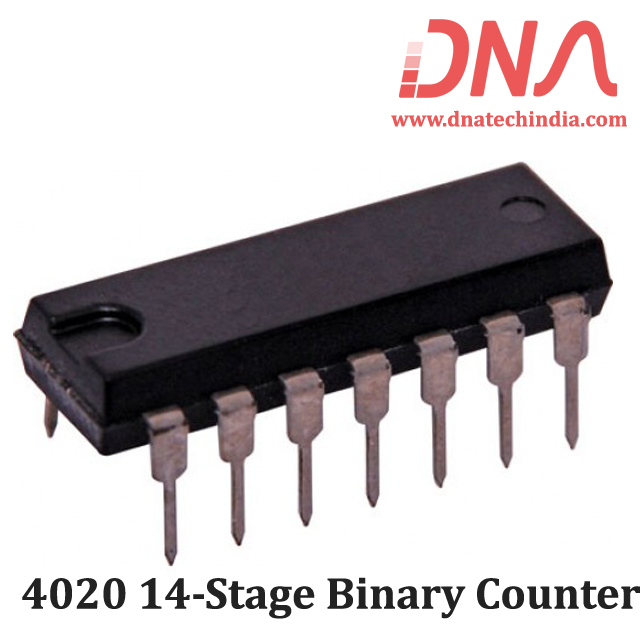

4020 14-stage binary counter

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-02
SKU: 237 | DAA117

Rs. 18.88 (inc GST)
Rs.16.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

4020 14-stage binary counter

The HEF4020B is a 14-stage binary counter with a clock input (CP), an overriding asynchronous master reset input (MR) and twelve fully buffered outputs (Q0, and Q3 to Q13). The counter advances on the HIGH to LOW transition of CP. A HIGH on MR clears all counter stages and forces all outputs LOW, independent of the state of CP.
Each counter stage is a static toggle flip-flop. A feature of the device is its high speed (typ. 35 MHz at VDD = 15 V). It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.

We have Various sizes of 4000 Series IC's. Check out our complete collection of 4000 Series IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 4020 14-Stage Binary Counter

High speed operation
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
Specified from 40 C to +85 C

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
