  • CD4026 7-SEGMENT DECADE COUNTER

Product Images are shown for illustrative purposes only and may differ from actual product.

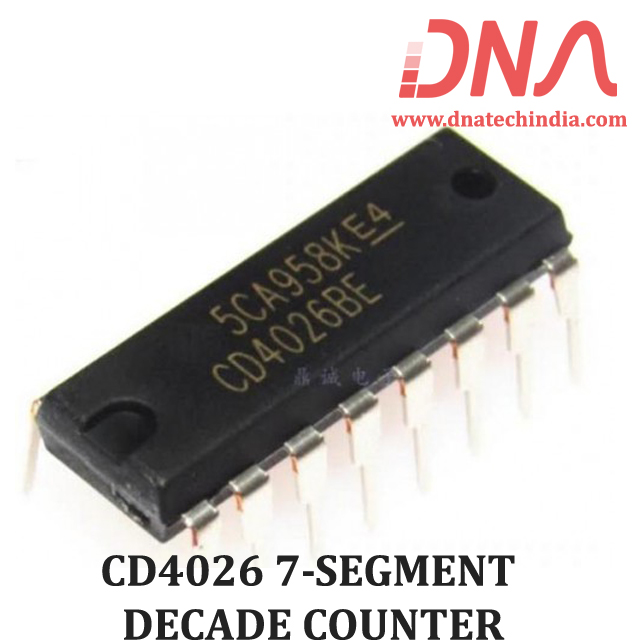

CD4026 7-SEGMENT DECADE COUNTER

  • Stock: 50
  • SKU: 1798 | DAA137
  • Rs. 34.22 (inc GST)
    Rs.29.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

CD4026 7-SEGMENT DECADE COUNTER

The CD 4026 is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages.

The CD 4026 consists of a 5-stages Johnson decade counter and an output decoder which converts the Johnson code to a 7 segment decoded output for driving one stage in a numerical display.

CD 4026 is particularly advantageous in display applications where low power dissipation and/or low package count are important. This device has CLOCK, RESET, CLOCK INHIBIT, DISPLAY ENABLE input and CARRY OUT, DISPLAY ENABLE, SEGMENT and 7 DECODED outputs (a to g). A high RESET signal clears the decade counter to its zero count. The counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBIT signal is high.

Antilock gating is provided on the JOHNSON counter, thus assuring proper counting sequence. The CARRY-OUT (COUT) signal completes one cycle every ten CLOCK INPUT cycles and is used to clock the succeeding decade directly in a multi-decade counting chain.

Specifications of CD4026 7-SEGMENT DECADE COUNTER

  • Counter And 7-segment Decoding In One Package
  • Easily Interfaced With 7-Segment Display Types
  • Fully Static counter Operation: DC To 6Mhz At VDD=10V
  • Ideal For Low Power Displays
  • Display Enable Output
  • Quiescent Current Specific Up to 20V
  • Standardized Symmetrical Output Characteristics
  • Inout Leakage Current= 100nA (Max) At VDD = 18V TA = 25°C
  • 100% Tested For Quiescent Current
