6N136 Optocoupler

Write a review | 0 reviews

Stock: 15

SKU: 0554 | DAA198

Rs. 28.32 (inc GST)
Rs.24.00 + GST

Qty :
Qty

Electronic Component of the Week (ELCOW) Arduino UNO 370/- Rs Only

GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Description

6N136 Optocoupler

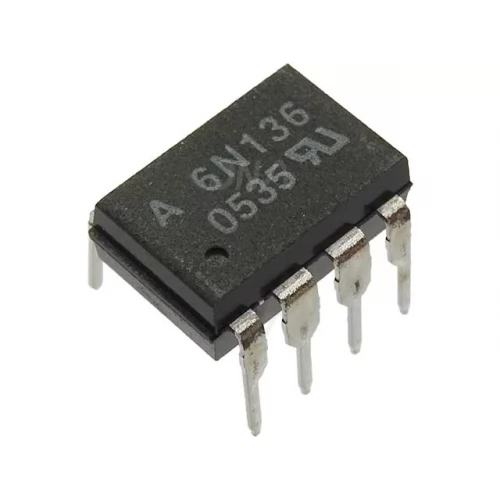

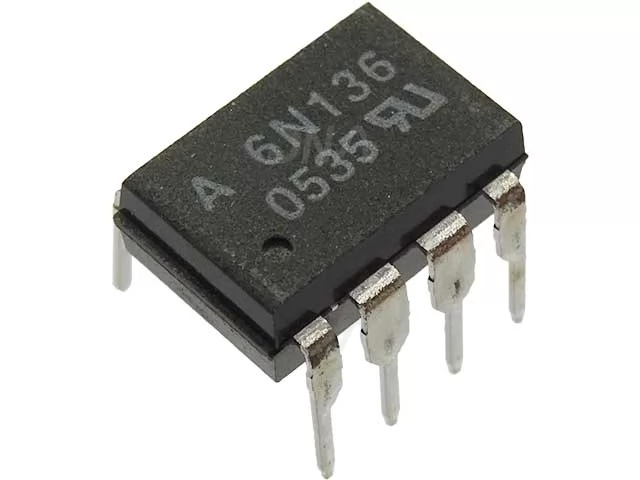

The 6N136 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package.

Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages.

Features of 6N136 Optocoupler

Isolation test voltages : 5300 VRMS
TTL compatible
High bit rates : 1 Mbit/s
High common-mode interference immunity
Bandwidth 2 MHz
Open-collector output
External base wiring possible
Reverse voltage (VR) 5V
Forward current (IF) 25mA
Storage temperature range (Tstg) - 55 to +150°C
Ambient temperature range (Tamb) - 55 to +100°C
Soldering temperature max. ≤ 10 s, dip soldering ≥ 0.5 mm from case bottom (Tsld) 260°C
Maximum output current 16mA
Base current (IB) 5mA
