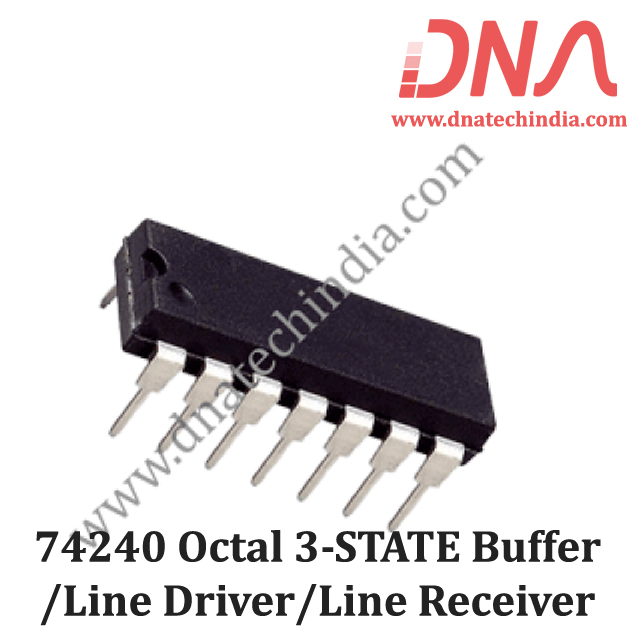

74240 Octal 3-STATE Buffer/Line Driver/Line Receiver

74240 Octal 3-STATE Buffer/Line Driver

74ACT11240 Buffer for 3-state applications with TTL compatibility, high fan-out, and low switching noise.

The 74240 Octal 3-STATE Buffer/Line Driver is ideal for enhancing performance in memory address drivers and bus-oriented receivers. It operates efficiently between −40°C to 85°C, ensuring reliability in various environments. This product features inverting outputs and symmetrical active-low output-enable (OE) inputs, making it a versatile choice for complex circuits. The 74ACT11240 also boasts a flow-through architecture that optimizes PCB layout, reducing high-speed switching noise effectively.

With high fan-out and improved fan-in, the 74ACT11240 is designed for seamless integration into your electronic projects. It includes TTL-voltage compatible inputs and offers multiple package options for flexibility in design. This octal buffer ensures that your system maintains high performance without compromising on space or efficiency.

Choose the 74ACT11240 for your next project and experience enhanced operational capabilities. It is suitable for various applications in electronic systems, including memory drivers, clock drivers, and communication interfaces. Explore our complete collection of 7400 Series ICs for more options.

Explore the reliable range of 7400 Series IC's at DNA. The 74ACT11240 is engineered for high-performance applications. Don't miss out on our other products in this category. Check other "7400 Series IC's" that we have in stock.

If you're searching for specific electronic components, DNA can help. We can import parts not readily available and support retail as well as bulk orders. Check out related items like DC to DC Converter IC, Super Capacitor, Resistor, and more. Contact Us.

Features of 74240 Octal 3-STATE Buffer/Line Driver

• TTL-Compatible Inputs
• Flow-Through Architecture
• Center-Pin VCC and GND Configurations
• High Fan-Out
• 500-mA Typical Latch-Up Immunity

Specification of 74240 Octal 3-STATE Buffer/Line Driver

• Operating Temperature: −40°C to 85°C
• Process Technology: EPIC 1-m
• Package Options: DW, DB, NT

Applications of 74240 Octal 3-STATE Buffer/Line Driver

• Memory Address Drivers
• Bus-Oriented Receivers
• Clock Drivers
• Communication Interfaces

Related Links for 74240 Octal 3-STATE Buffer/Line Driver

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74240 Octal 3-STATE Buffer/Line Driver
