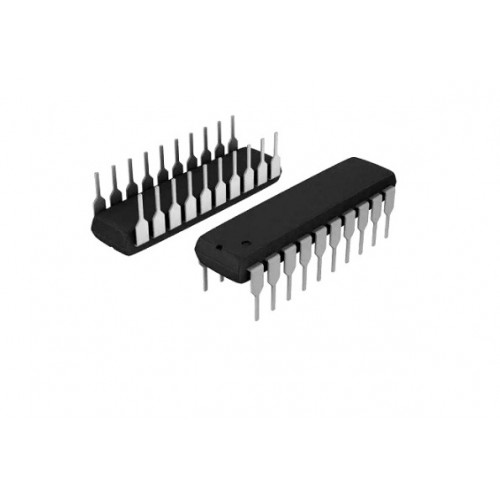

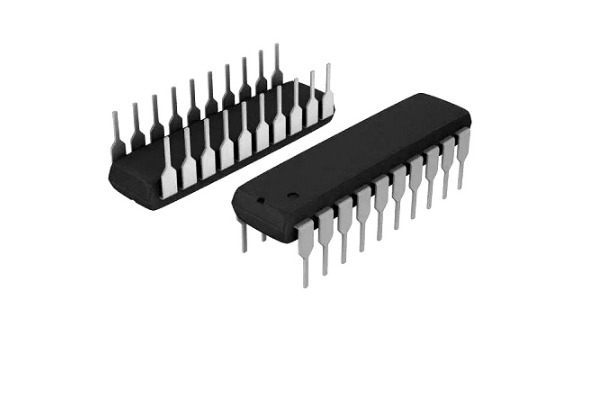

74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20

74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20

74HC540 Buffer IC with 8 inverting outputs, 2V to 6V operating voltage, and low power consumption.

The 74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20 provides high-speed operation and low power consumption. This IC features eight independent inverting buffers, making it ideal for bus interface and buffering applications. With a wide operating voltage range of 2V to 6V, it supports both CMOS and TTL logic levels, ensuring compatibility across various systems.

Utilizing advanced CMOS technology, the 74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20 offers high noise immunity and fast switching times. It can drive large bus capacitances while maintaining stable performance in noisy environments. The output current capabilities of 6mA enhance its utility in various electronic applications.

Ideal for logic level inversion and signal isolation, the 74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20 serves multiple purposes, including memory address driving and peripheral control. This versatile IC is essential for any electronics project requiring efficient signal processing.

At DNA, we offer a range of reliable Misc Digital IC's including the 74HC540 Octal 3-state Inverting Buffer IC (74540 IC). Explore our selection for quality components to support your projects. Check other Misc Digital IC's that we have in stock.

If you need more electronic components, reach out to us. We can help you find specific parts or import them if they're unavailable. We support both retail and bulk orders. Consider related items like SMPS, Digital IC, Diode, Development Module, and Sensor. Contact Us

Features of 74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20

• Octal Buffer/Inverter: Contains 8 independent inverting buffers
• Three-State Outputs: Supports bidirectional communication
• High-Speed CMOS Technology: Ensures fast switching times
• Wide Operating Voltage Range: Typically from 2V to 6V
• TTL Compatible Inputs: Works well with both CMOS and TTL levels
• High Noise Immunity: Provides stable operation

Specification of 74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20

• Logic Type: Octal Inverting Buffer
• Number of Inputs: 8
• Operating Voltage: 2V to 6V
• High-Level Output Current (I_OH): -25mA
• Low-Level Output Current (I_OL): 25mA
• Propagation Delay: ~12ns at 5V

Applications of 74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20

• Bus Interface and Buffering
• Logic Level Inversion
• Signal Isolation
• Memory Address Driving
• Peripheral Control

Package Includes

• 1 X 74HC540 Octal 3-state Inverting Buffer IC (74540 IC) DIP-20
