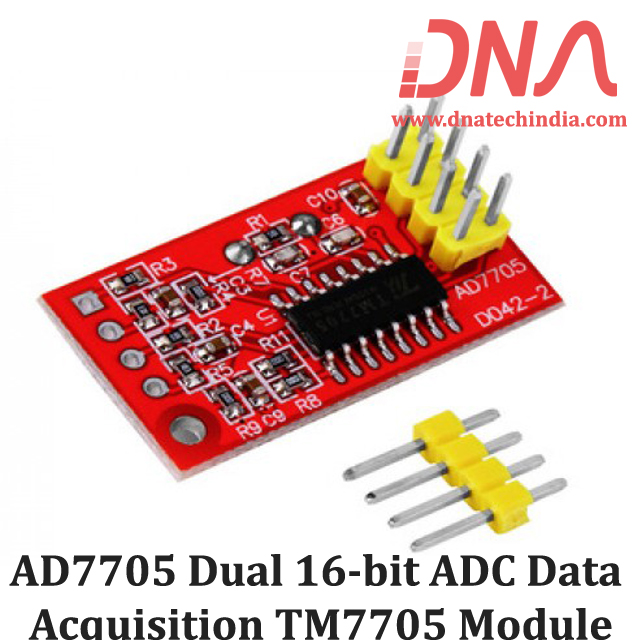

AD7705 Dual 16-bit ADC Data Acquisition TM7705 Module

Write a review | 4 reviews

Stock: 5
Availability: InStock priceValidUntil: 2026-12-07
Brand: Generic
SKU: 593 | DAA769

Rs. 460.20 (inc GST)
Rs.390.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

AD7705 Dual 16-bit ADC Data Acquisition Module

AD7705 ADC module for low frequency signal measurement with SPI interface and programmable gain.

The AD7705 Dual 16-bit ADC Data Acquisition Module is designed for precise measurement of low frequency signals. It integrates a charge-balancing ADC, a calibration microcontroller, and a digital filter, making it suitable for industrial and process control applications. The module operates on a 3.3V or 5.0V DC power supply and features a programmable gain amplifier with a range from 1 to 128 times. This flexibility allows users to tailor the gain to their specific needs.

The AD7705 Dual 16-bit ADC Data Acquisition Module includes an external reference voltage LM285-2.5, ensuring accuracy and temperature stability. The input circuit with a resistor divider and RC filter further enhances performance, making it ideal for connecting to various sensors. The SPI interface simplifies integration with microcontrollers, ensuring smooth data transfer.

For customers in Nashik, visit our local shop at New CBS or order online for delivery across India. Explore the capabilities of the AD7705 Dual 16-bit ADC Data Acquisition Module to elevate your electronic projects with reliable data acquisition.

Explore high-quality ADC and DAC Modules at DNA. The AD7705 from a trusted manufacturer ensures reliable data acquisition. Check other ADC and DAC Modules that we have in stock.

At DNA, we cater to all your electronic component needs. If you cannot find a specific part, let us know. We can import items for you and support retail as well as bulk orders. Check out related components like Power Supply, Capacitor, Diode, HMI Display, Programmer, and IGBT. Contact Us

Features of AD7705 Dual 16-bit ADC Data Acquisition Module

On-chip digital filtering
Programmable gain amplifier
SPI interface

Specification of AD7705 Dual 16-bit ADC Data Acquisition Module

Power Supply: 3.3V or 5.0V
Gain Range: 1-128
Main ADC Chip: TM7705

Applications of AD7705 Dual 16-bit ADC Data Acquisition Module

Industrial control
Process control
Sensor data acquisition

Package Includes

1 X AD7705 Dual 16-bit ADC Data Acquisition Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
