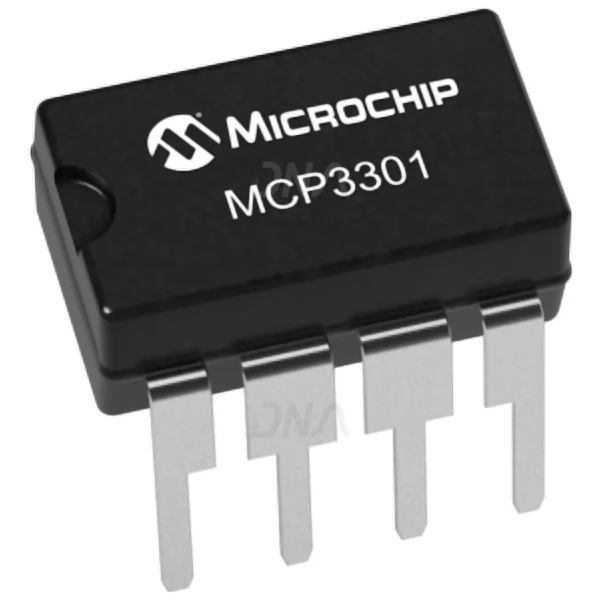

MCP3301 13-Bit Analog to Digital Convertor
- Stock: Out Of Stock
- SKU: 652 | DAA041
-
Rs. 401.20 (inc GST)
Rs.340.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MCP3301 13-bit Analog to Digital Converter (ADC)
The MCP3301 13-bit Analog to Digital Converter (ADC) features a full differential input and low power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications. The industry-standard SPI™ serial interface enables 13-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3301 ADC features 100k samples/second, 1 input channel, low power consumption (300 nA typical standby, 450µA maximum active), and is available in 8-pin PDIP, SOIC and MSOP packages. The full differential input of the MCP3301 enables a wide variety of signals to be used in applications such as remote data acquisition, portable instrumentation, and battery operated applications.
Features MCP3301 13-bit Analog to Digital Converter (ADC)
13-bit resolution
Differential input
SPI interface
±1 LSB DNL
±1 LSB INL
100 ksps sample
-40 to +85°C temperature range
AEC-Q100 Grade 3
Input Voltage Range 4.5V to 5.5V
