  • MCP4922 12Bit DAC

Product Images are shown for illustrative purposes only and may differ from actual product.

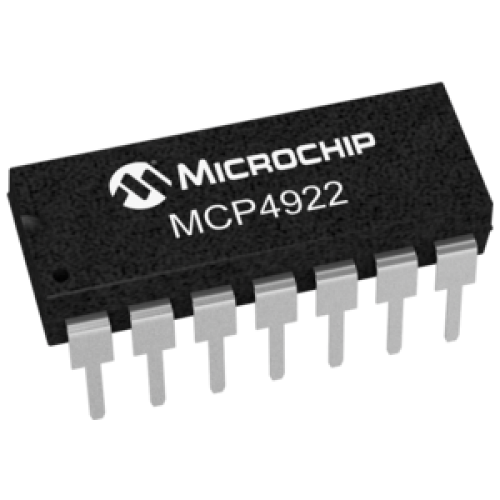

MCP4922 12Bit DAC

  • Brand: Microchip
  • Product Code: 537
  • Availability: 5
  • Price :

    Rs.265.50 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

MCP4922 12-Bit DAC with SPI Interface

Microchip's MCP4922 is a dual channel, 12-bit DAC with an external voltage reference and SPI interface. It offers high accuracy and low power consumption and is available in various packages.

The MCP4922 device is a part of the MCP4902/MCP4912/MCP4922 product family, which are dual channel 8-bit/10-bit/12-bit DACs which use external voltage reference (VREF). These devices provide very high accuracy and low noise performance, and are suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. The low power consumption and small package options make these devices very attractive for many portable and battery-powered applications. If one output is needed then the MCP4901/4911/4921 single channel product family can be used.

Features of MCP4922 DAC

  • 12-bit Resolution
  • Dual Channel Voltage Output
  • 2.7V to 5.5V Operation
  • Operating Current 350 µA (typ)
  • External Voltage Reference Pin
  • INL ±2 LSB (typ)
  • DNL ±0.75 LSB (max)
  • Output Settling Time 4.5 µs
  • SPI Interface
  • Temperature Range -40°C to +125°C

External Links:

For more Technical details check MCP4922 12-Bit DAC Datasheet
