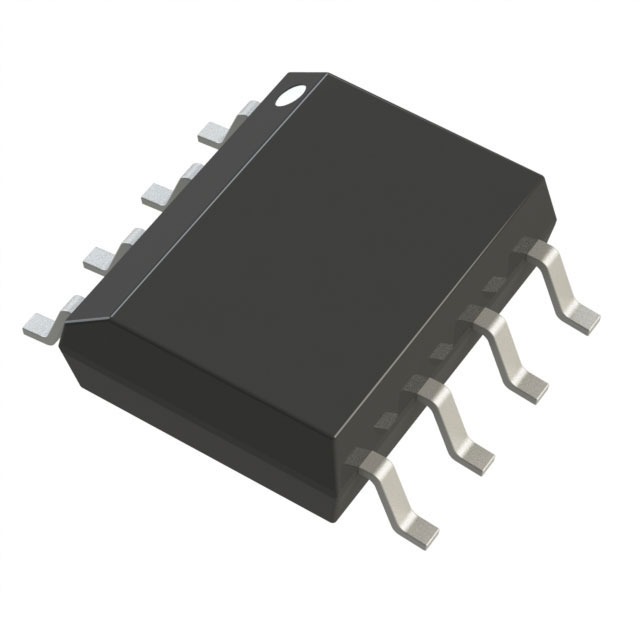

• AD8223BRZ Instrumentation Amplifier (SOIC-8) IC

Product Images are shown for illustrative purposes only and may differ from actual product.

AD8223BRZ Instrumentation Amplifier (SOIC-8) IC

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-01-07

  • SKU: 7381 | DAF892

Availability: InStock priceValidUntil: 2026-01-07

  • Rs. 442.50 (inc GST)
    Rs.375.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

AD8223BRZ Instrumentation Amplifier (SOIC-8) IC

AD8223BRZ Instrumentation Amplifier (SOIC-8) IC

The AD8223BRZ Instrumentation Amplifier is an integrated single-supply instrumentation amplifier that delivers rail-to-rail output swing on a single supply (3 V to 24 V). The AD8223 conforms to the 8-lead industry standard pinout configuration. The AD8223 is simple to use: one resistor sets the gain. With no external resistor, the AD8223 is configured for G = 5. With an external resistor, the AD8223 can be programmed for gains up to 1000. The AD8223 has a wide input common-mode range and can amplify signals that have a 150 mV common-mode voltage below ground. Although the design of the AD8223 is optimized to operate from a single supply, the AD8223 still provides excellent performance when operated from a dual voltage supply (±2 V to ±12 V).

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of AD8223BRZ Instrumentation Amplifier (SOIC-8)IC

  • Low Power Consumption: Operates on a supply current of only 350 µA, ideal for battery-powered applications.
  • High Common-Mode Rejection: Ensures accurate measurements in noisy environments with a CMRR of 100 dB.
  • Wide Supply Range: Supports a wide operating voltage range of ±2.7 V to ±12 V.
  • Low Offset Voltage: Maximum input offset voltage is 100 µV, which improves precision in sensitive applications.
  • Low Noise: 40 nV/√Hz input voltage noise ensures low-noise amplification for high accuracy.

Specifications of AD8223BRZ Instrumentation Amplifier (SOIC-8)IC

  • Input Offset Voltage: 100 µV max
  • Gain Range: 1 to 1000 (set by external resistors)
  • Supply Voltage Range: ±2.7 V to ±12 V (or single supply of 2.7 V to 24 V)
  • Supply Current: 350 µA
  • Common-Mode Rejection Ratio (CMRR): 100 dB
  • Bandwidth (at Gain of 1): 500 kHz

    Package Includes

    • 1 x AD8223BRZ Instrumentation Amplifier (SOIC-8)IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
