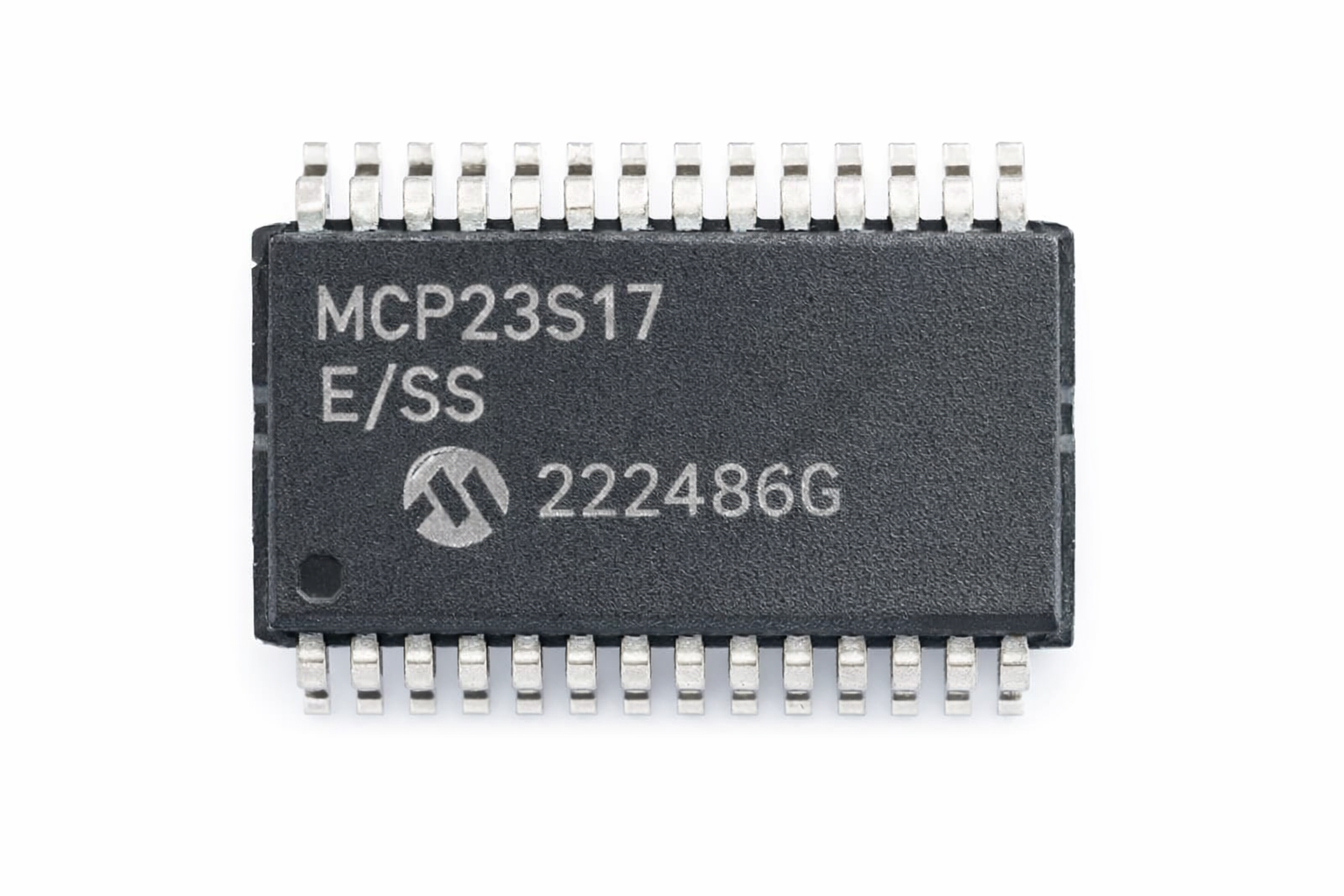

MICROCHIP MCP23S17-E/SS I/O Expander for SPI Applications

MICROCHIP MCP23S17-E/SS I/O Expander for SPI Applications

MCP23S17-E/SS I/O Expander for SPI, 16-bit, 28 Pins, operates at 1.8V to 5.5V.

The MICROCHIP MCP23S17-E/SS I/O Expander is a versatile solution for serial communication. It offers 16 bits of I/O expansion for SPI applications. This component features multiple 8-bit configuration registers, allowing you to set input, output, and polarity options easily. The system master can control I/Os as inputs or outputs by setting the I/O configuration bits. With a compact SSOP package, it is ideal for space-constrained designs.

Designed for both 8-bit and 16-bit modes, the MCP23S17-E/SS I/O Expander provides flexibility in your electronic projects. It enables the inversion of input port polarity through dedicated registers, making it suitable for various applications. The component is compatible with a range of microcontrollers, enhancing your design's efficiency and functionality.

This I/O expander is perfect for automation, robotics, and custom electronic projects. Leverage the MCP23S17-E/SS to simplify your circuit designs while expanding your I/O capabilities effectively.

Explore high-quality products from DNA in the Power Devices category. The MICROCHIP brand offers reliable solutions. Discover more in our range of Power Devices. Check other "Power Devices" that we have in stock.

If you need specific electronic components, reach out to us. We can help you find parts like Analog ICs, MOSFETs, Diodes, and more. We also support retail and bulk orders and can import items if they are not available. Contact Us.

Features of MICROCHIP MCP23S17-E/SS I/O Expander for SPI Applications

• 16-bit I/O expansion
• Multiple 8-bit configuration registers
• Operates at 1.8V to 5.5V
• Supports SPI communication
• Compact SSOP package

Specification of MICROCHIP MCP23S17-E/SS I/O Expander for SPI Applications

• 28 Pins
• I/O configuration bits
• Polarity inversion register
• 8-bit and 16-bit modes
• -40°C to +125°C operating temperature

Applications of MICROCHIP MCP23S17-E/SS I/O Expander for SPI Applications

• Automation
• Robotics
• Microcontroller interfacing
• Custom electronic projects
• Home automation

Package Includes

• 1 X MICROCHIP MCP23S17-E/SS I/O Expander for SPI Applications
