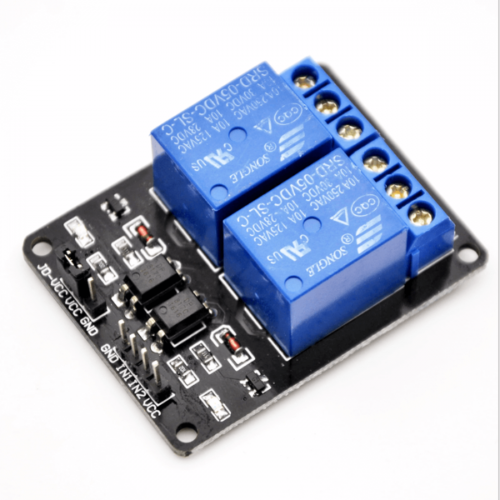

5 Volt 2-Channel Isolated Relay Module

  • Stock: 29
  • SKU: 1389 | DAB287
  • Rs. 112.93 (inc GST)
    Rs.95.70 + GST

    Qty :

  • Quantity Pricing (inc GST)

    3 + 108.75 7 + 104.57 10 + 100.39 20 + 96.22

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

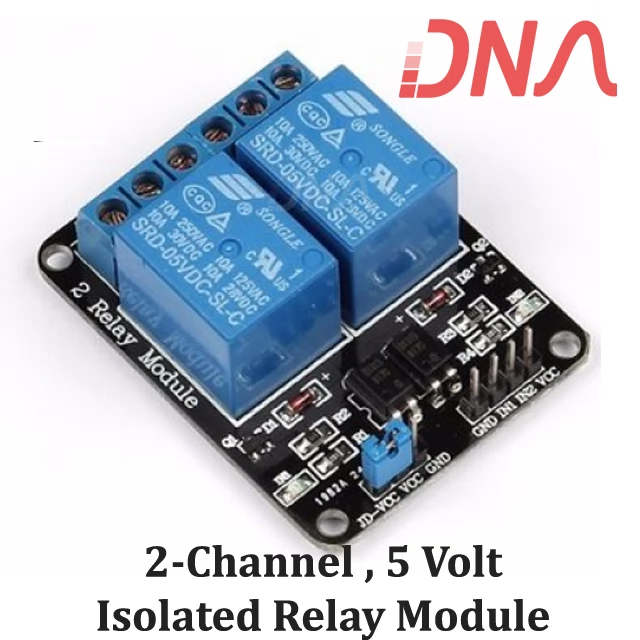

2-Channel 5 Volt Isolated Relay Module

These are optically isolated relay modules having 5 Volt cube Relays.

The relays are driven by a Opto-coupler which provides isolation between your Micro-controller, Arduino or Raspberry Pi & the relay thus making this module better that the modules having transistor or ULN2003 IC as drivers.

This is a 2 channel Relay Module with output relay contacts of 10 ampere at 250 volts.  You can use it easily with any Micro-controller, Arduino or Single Board Computers (SBC) like Raspberry Pi and Beagle bone. You can even use this module with digital IC's like LM555 of HT12D.

Features of 2 channel 5 volt Relay Board

  • Size : 51mm (length) x 40mm (W) x 19.3mm (height);
  • Weight : 55g;
  • PCB Color: Black;
  • board four weeks with four screw holes, hole diameter 3.1mm, easy to install and fixed;
  • Relay selection of quality loose music relays, SPDT. A common terminal, a normally open, one normally closed terminal;
  • optocoupler isolation, good anti-jamming;
  • Low pull, high release. Energisation status indicator light, release status LED is off;
  • VCC for the system power, JD_VCC for the relay power. Default hair 5V relay, plug the jumper cap to;
  • Relay Maximum output : DC 30V/10A, AC 250V/10A
  • Wiring: VCC: positive power supply system GND : System power supply negative IN1 – IN2 : relay control ports

Applications Of 2 channel 5 volt Relay Board

  • Support all Micro-Controller
  • Industrial sector
  • PLC control
  • Smart home Automation
