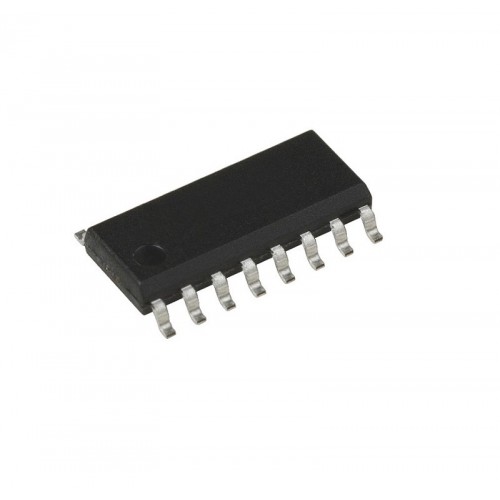

INA125U Amplifier With Precision Voltage SOIC-16 IC
- Stock: 5
- SKU: 7625 | DAH443
-
Rs. 1,416.00 (inc GST)
Rs.1,200.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
INA125U Amplifier With Precision Voltage SOIC-16 IC
INA125U Amplifier With Precision Voltage SOIC-16 IC
The INA125U is a low-power, high-accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit. A single external resistor sets any gain from 4 to 10,000. The INA125 is laser-trimmed for low offset voltage (250µV), low offset drift (2µV/°C), and high common-mode rejection (100dB at G = 100). It operates on single (+2.7V to +36V) or dual (±1.35V to ±18V) supplies. The voltage reference is externally adjustable with pin selectable voltages of 2.5V, 5V, or 10V, allowing use with a variety of transducers. The reference voltage is accurate to ±0.5% (max) with ±35ppm/°C drift (max). Sleep mode allows shutdown and duty cycle operation to save power. The INA125 is available in 16-pin plastic DIP and SO-16 surface-mount packages and is specified for the –40°C to +85°C industrial temperature range.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of INA125U Amplifier With Precision Voltage SOIC-16 IC
- Manufacturer Part No: INA125U
- Series: INA125
- Number of Channels: 1 Channel
- 3 dB Bandwidth: 150 kHz
- Slew Rate: 200 mV/us
- Common Mode Rejection Ratio: 100 dB
- Input Bias Current: 25 nA
- Input Offset Voltage: 250 uV
Applications of INA125U Amplifier With Precision Voltage SOIC-16 IC
- Pressure and Temperature Bridge Amplifiers
- Industrial Process Control
- Factory Automation
- Multi-Channel Data Acquisition
- Battery Operated Systems
- General Purpose Instrumentation
Package Includes
- 1 x INA125U Amplifier With Precision Voltage SOIC-16 IC
