• K4H561638J-LCB3 ,256Mb, J-die DDR SDRAM, TSOP, 7.8us IC

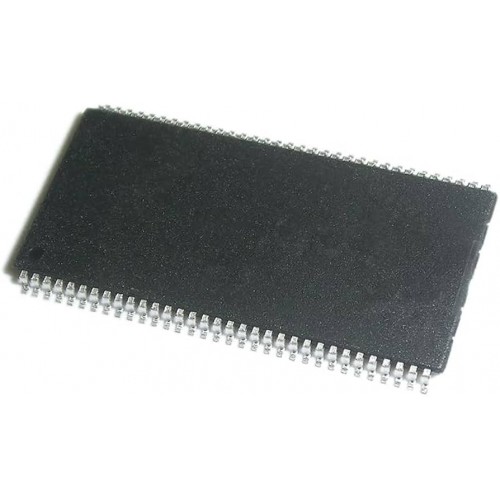

Product Images are shown for illustrative purposes only and may differ from actual product.

K4H561638J-LCB3 ,256Mb, J-die DDR SDRAM, TSOP, 7.8us IC

  • Stock: Out Of Stock
  • SKU: 7096 | DAG977

Availability: NotInStock priceValidUntil: 2025-10-13

  • Rs. 259.60 (inc GST)
    Rs.220.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

K4H561638J-LCB3 ,256Mb, J-die DDR SDRAM, TSOP ,7.8us IC

K4H561638J-LCB3 IC

The K4H560438J  is 268,435,456 bits of double data rate synchronous DRAM organized as 4x 16,777,216 / 4x 8,388,608 / 4x 4,194,304 words by 4/8/16bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous features with Data Strobe allow extremely high performance up to 400Mb/s per pin. I/O transactions are possible on both edges of DQS. Range of operating frequencies, programmable burst length and programmable latencies allow the device to be useful for a variety of high performance memory system applications.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of K4H561638J-LCB3 IC

  • All inputs except data & DM are sampled at the positive going edge of the system clock(CK)
  • Data I/O transactions on both edges of data strobe
  • Edge aligned data output, center aligned data input;
  • LDM,UDM for write masking only (x16)
  • Bidirectional data strobe [DQS] (x4,x8) & [L(U)DQS] (x16)
  • Edge aligned data output, center aligned data input

Specifications of K4H561638J-LCB3 IC

  •  Density: 256Mbit (32M x 8)
  • Organization: 32M x 8
  • Package Type: 66-TSOP (II) with lead-free packaging
  • Data Rate: DDR-400 (400 Mb p s per pin)
  • Voltage: 2.5V ± 0.2V
  • Interface: SSTL_2

    Package Includes

    1 x K4H561638J-LCB3 IC, 256Mb, J-die DDR SDRAM, TSOP, 7.8us

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
