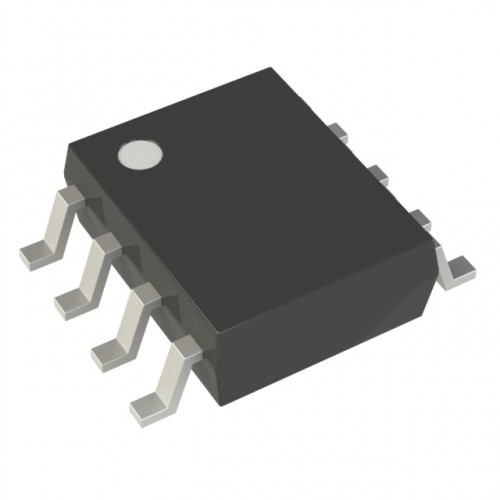

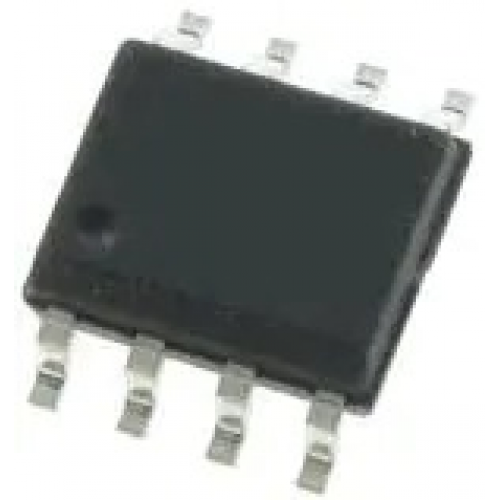

L6562DTR PFC Controller(SOIC-8)

L6562DTR PFC Controller(SOIC-8)

The L6562DTR is a current-mode Power Factor Correction (PFC) controller from STMicroelectronics, designed to operate in Transition Mode (TM). It serves as an enhanced successor to the L6561, offering improved performance while maintaining pin-to-pin compatibility.

DNA solutions, Nashik has various types of  Controller's. Check out our complete collection of Controller's.

• High Precision Reference Voltage: Features a 1% internal reference voltage at 25°C, ensuring accurate output regulation

• Low Startup and Quiescent Current: Exhibits ultra-low startup current (=70 µA) and low quiescent current (=4 mA), contributing to energy efficiency.

• Extended Supply Voltage Range: Operates effectively within a supply voltage range of 10.3V to 22V, providing flexibility in various applications

• Robust Gate Driver: Equipped with a totem-pole gate driver capable of sourcing -600 mA.

• Integrated Protections: Includes adjustable output overvoltage protection and an on-chip filter on current sense, enhancing system reliability

• Disable Function: Offers a disable function for power management and protection purposes.

Specifications of L6562DTR PFC Controller(SOIC-8)

• Operating Temperature Range: Suitable for temperatures from -25°C to 125°C

• Switching Frequency: Capable of operating at frequencies up to 1 MHz, allowing for compact power supply designs.

• Package Type: Available in an 8-pin SOIC package, facilitating ease of integration into various circuit designs

Applications of L6562DTR PFC Controller(SOIC-8)

• transition-mode (TM) operation

• particularly in PFC pre-regulators

Package Includes

      1 x L6562DTR PFC Controller(SOIC-8)
